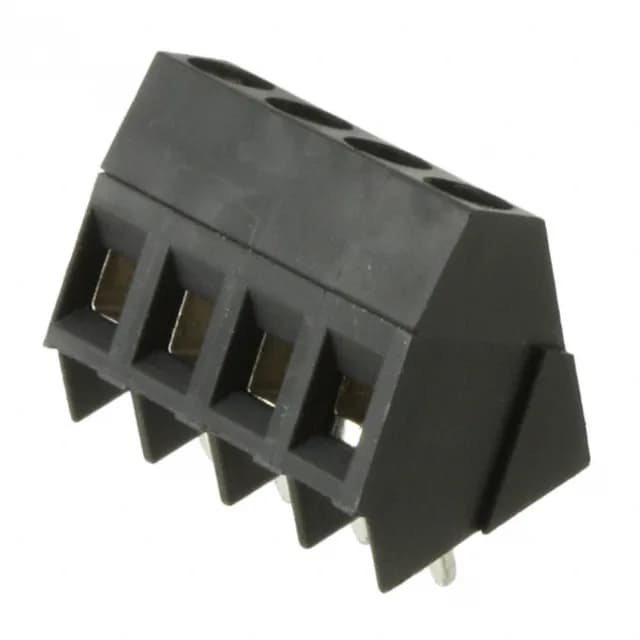

796689-4 TE Connectivity Buchanan 4-Position 5.00mm

MPN 796689-4
Active

TE Connectivity AMP Connectors Buchanan 796689-4, 4-position, 1-level terminal block, 0.197" (5.00mm) pitch, screw - rising cage clamp termination, black housing, rated 17.5 A at 300 V, through-hole mount, active RoHS.

$2.1600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

796689-4 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current17.5 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
ColorBlack
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Tin Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.197\" (5.00mm)

All specifications

796689-4 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Mating orientation35° (145°) Angle with Board
Positions per level4

Product details

4-position 5.00mm pitch terminal block for panel wiring

The 796689-4 is a 4-position, single-level terminal block from the TE Buchanan series, using a screw - rising cage clamp to terminate 12-30 AWG wire. The 0.197" (5.00mm) pitch and 17.5 A rating suit it for power distribution on a PCB, while the interlocking side feature lets you snap multiple blocks together without extra hardware.

Wiring and termination: screw clamp with M3 torque spec

The rising cage clamp accepts solid or stranded wire from 12 AWG down to 30 AWG. The M3 screw is tightened to 0.79 Nm (7.0 Lb-In) — that torque spec is the sweet spot for a gas-tight connection without stripping the brass-nickel screw. The contact and clamp are brass with tin plating, which gives good corrosion resistance for indoor industrial environments. The screw is brass with nickel plating — the nickel adds a harder wear surface for repeated terminations.

Mounting and board fit: through-hole, 35° wire entry

The block mounts through-hole on the PCB. The wire entry is at a 35° angle (or 145° depending on orientation), which helps route wires in tight enclosures where straight vertical entry won't fit.
