TE Connectivity AMP Connectors 796690-8

TE Buchanan 796690-8 Terminal Block, 8 Pos, 5mm, 17.5A

MPN 796690-8
Active

TE Connectivity Buchanan series PCB terminal block, 8 positions, 0.197" (5.00 mm) pitch, 17.5 A, 300 V, rising cage clamp, 35° wire entry, green housing, through-hole, M3 screw.

$5.7100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

796690-8 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current17.5 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Tin Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.197\" (5.00mm)

All specifications

796690-8 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Mating orientation35° (145°) Angle with Board
Positions per level8

Product details

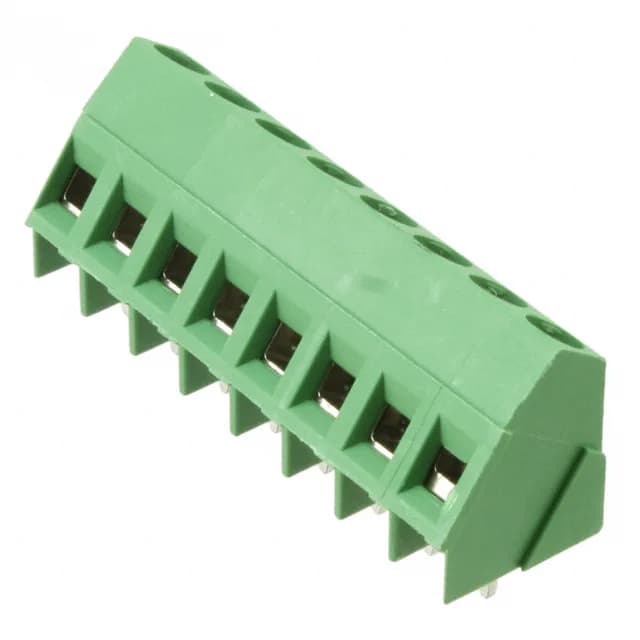

8-Position PCB Terminal Block with 5.00 mm Pitch

The TE Connectivity Buchanan 796690-8 is an 8-position, single-level PCB terminal block on a 0.197" (5.00 mm) pitch. It uses a rising cage clamp termination — the screw (M3) drives a clamp that pulls the wire against a tin-plated brass current bar, giving a gas-tight connection across 12-30 AWG wire. The green polyamide 6/6 housing carries a 17.5 A current rating at 300 V, making it a fit for power distribution, motor controls, and industrial I/O blocks where each circuit carries real load, not just signal.

35° Wire Entry and Side Interlocking

The wire termination is oriented at a 35° (145°) angle relative to the PCB. This angled entry helps route wires in tight enclosures.

There is no last-time-buy or phase-out notice on record.
