TE Connectivity AMP Connectors 796858-3

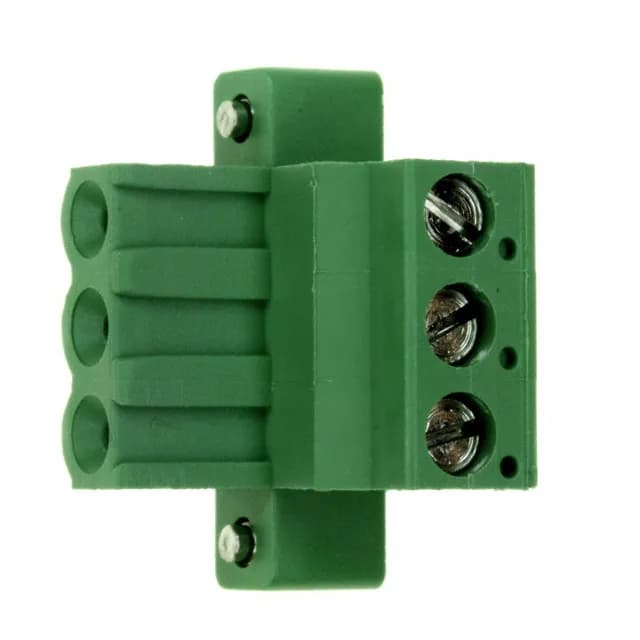

796858-3 TE Connectivity Buchanan 3-Pin 5.00mm Plug, 15 A

MPN 796858-3
Active

TE Connectivity AMP Connectors Buchanan series, 796858-3, Type Plug, Female Sockets, 3 positions, 0.197" (5.00mm) pitch, 15 A, 300 V, screw - rising cage clamp termination, free hanging, green housing, UL94 V-0.

$4.1000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

796858-3 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL15 A
Plug wire entry180°
Wire strip length6-7.5mm
Wire gauge or range - AWG12-30 AWG
Wire gauge or range - mm20.05-3mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialPhosphor Bronze

All specifications

796858-3 additional specifications
ParameterValue
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.610\" (15.49mm)
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesMating Flange
Screw sizeM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions3
Positions per level3
Contact mating finishTin

Product details

3-position 5.00 mm plug for panel wiring

The 796858-3 is a 3-position plug from the TE Buchanan series, pitched at 0.197" (5.00mm) — the standard spacing for 300 V terminal blocks. It carries a 15 A continuous rating per UL, which puts it in the power distribution range for control cabinets and junction boxes, not just signal-level switching. Termination is a screw rising cage clamp accepting 12-30 AWG solid or stranded wire. The M3 screw torque is set at 0.79 Nm (7.0 Lb-In), and the strip length is 6-7.5 mm — standard for this class of block. The wire entry is 180° straight-in, which simplifies routing in a crowded enclosure.
