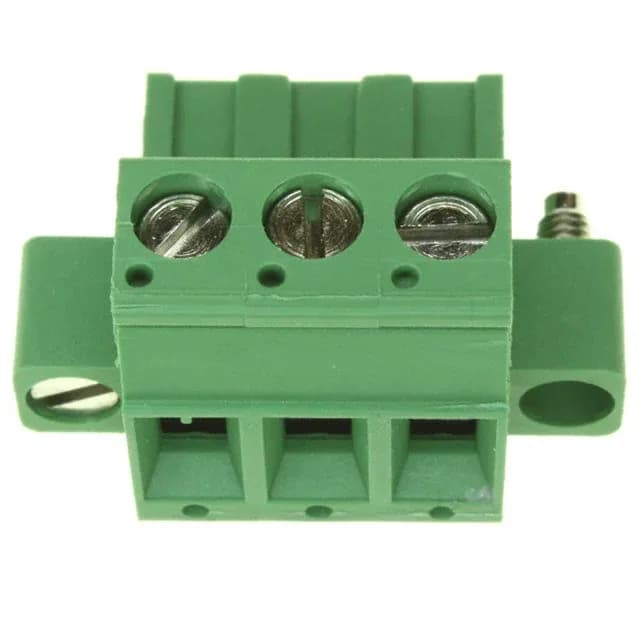

TE Connectivity AMP Connectors Buchanan series plug, female sockets, 3 positions, 0.200" (5.08mm) pitch, 15 A, 300 V, screw rising cage clamp termination, green housing, free hanging (in-line), active production.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.610\" (15.49mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Mating Flange |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
The 796859-3: Strip the wire to 6-7.5 mm before insertion. The rising cage mechanism lifts the clamp as the screw is turned, allowing the stripped conductor to slide fully under the clamp. Tightening the screw to the specified torque (0.79 Nm) secures the wire without damaging it.
RoHS compliant.
The 796859-3 is available through independent distribution. Submit an RFQ against your BOM quantity for current pricing and lead time — availability is confirmed at quote time, not on a stock-holding basis.
The torque specification is 0.79 Nm (7.0 Lb-In). This ensures the rising cage clamp secures the wire without over-tightening.
