4-Position 5.08mm Pitch Plug for Panel Wiring

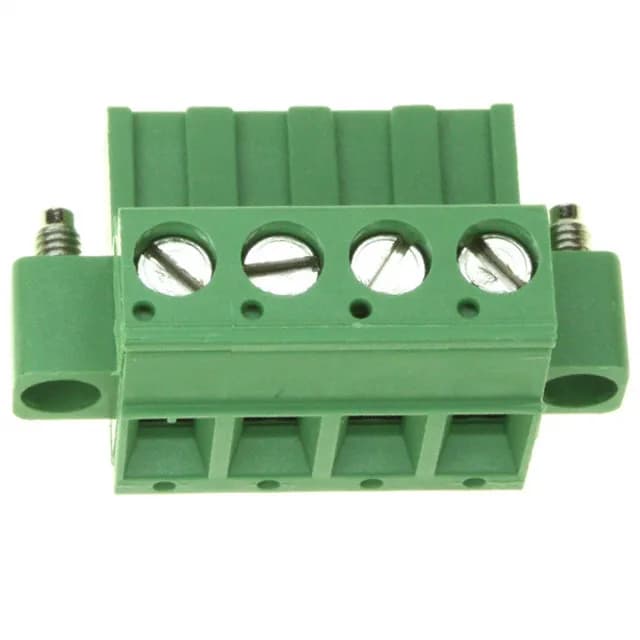

The 796859-4: This Buchanan plug carries 4 positions on a 0.200" (5.08mm) pitch, rated 15 A at 300 V — a common density for industrial terminal blocks feeding PLC I/O or sensor power rails. The free-hanging (in-line) body with 180° wire entry lets the cable run straight into the enclosure, keeping the wiring neat inside a cabinet or junction box.
Screw Clamp and Mating Flange Details
The rising cage clamp lifts a pressure plate against the wire — the screw does not rotate against the conductor, so stranded wire stays intact under the specified torque. A mating flange on the plug body accepts the corresponding header's locking feature, providing pull-out resistance in a panel where the cable sees occasional tugging. Contact mating finish is tin — rated for the typical 50-100 mating cycles of a terminal block application, not for high-cycle field-service reconnect duty.
