TE Connectivity AMP Connectors 796861-8

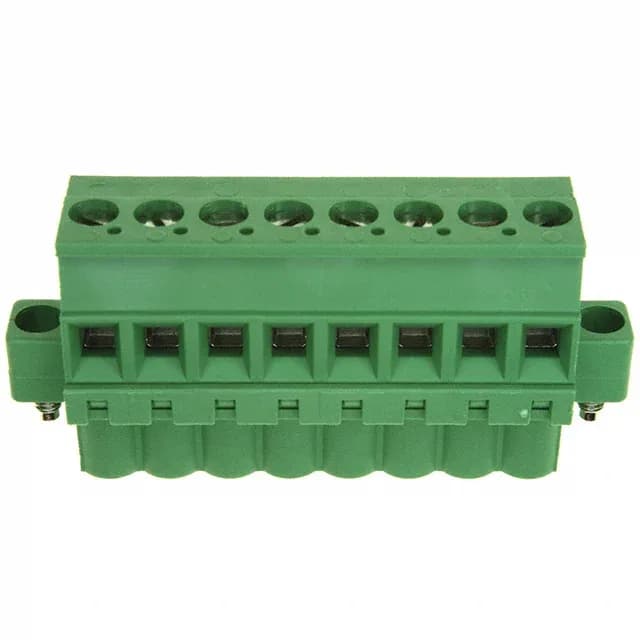

TE 796861-8 Buchanan 8-Position 5.08mm Plug, Female Sockets

MPN 796861-8
Active

TE Connectivity AMP Connectors Buchanan 796861-8, Plug Female Sockets, 8 positions, 0.200" (5.08mm) pitch, 15 A UL, 300 V UL, free hanging in-line, screw rising cage clamp, 270° wire entry, tin contacts, UL94 V-0, active.

$13.1900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

796861-8 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL15 A
Plug wire entry270°
Wire strip length6-7.5mm
Wire gauge or range - AWG12-30 AWG
Operating temperature-40°C~110°C
ColorGreen
Contact materialPhosphor Bronze
Housing materialPolyamide (PA66), Nylon 6/6

All specifications

796861-8 additional specifications
ParameterValue
Insulation height0.984\" (25.00mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesMating Flange, Retention Latches (Non-Wire Side)
Screw sizeM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions8
Positions per level8
Contact mating finishTin

Product details

The 796861-8: This 8-position plug on a 0.200" (5.08mm) pitch matches the standard Buchanan header footprint. The 5.08mm pitch gives you room to route larger-gauge wire without crowding adjacent terminals.

Mounting and Retention in the Assembly

Free hanging in-line mounting means this plug floats on the wire, not fixed to a panel. The mating flange and retention latches (non-wire side) lock it to the header, so vibration won't shake it loose.

Comparing to the 4-Position Sibling

The 796859-4 is the same series with 4 positions and 180° wire entry instead of 270°. If your circuit count is lower or you need straight wire exit, that sibling fits the same header pitch.
