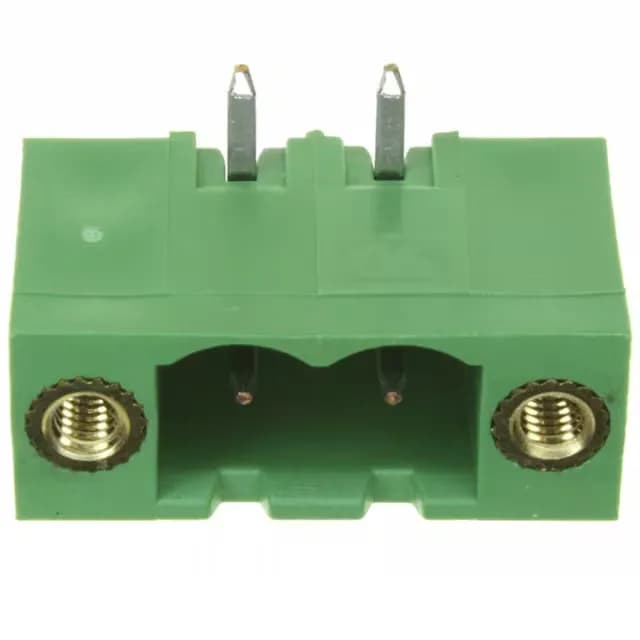

TE Connectivity AMP Connectors Buchanan series, 796866-2 — Header, Male Pins, Shrouded (4 Side), 2 positions, 0.200" (5.08mm) pitch, right-angle, through-hole, solder termination, tin contacts, 15 A, 300 V, UL94 V-0, green, bulk.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.329\" (8.36mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
Operating temperature from -40°C to 110°C covers most indoor industrial environments, including unheated storage areas and cabinets near machinery.
Available in bulk packaging.
Yes, this header is designed to mate with 5.08mm pitch terminal block plugs. The mating flange provides additional retention.
