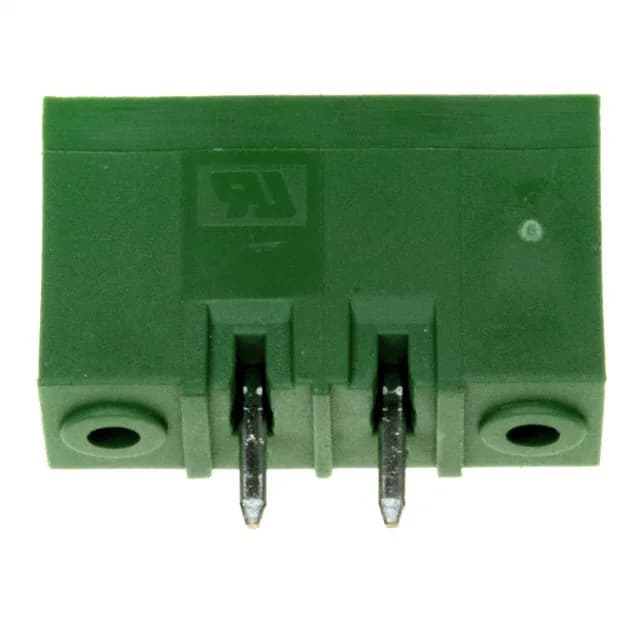

TE Connectivity AMP Connectors Buchanan series, 796867-2, 2-position vertical shrouded header, 0.200" (5.08 mm) pitch, through-hole solder termination, tin-plated contacts, rated 15 A at 300 V, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.472\" (12.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
The 796867-2 is a 2-position, single-level, vertical shrouded header from the TE Buchanan series. The shrouded (4 side) housing and integral mating flange provide polarization and mechanical retention, which helps keep the pair mated under cable strain.
The 796867-2 is a shrouded male header. It mates with a Buchanan series female plug or receptacle that matches the 0.200" (5.08 mm) pitch and 2-position layout.
