TE Connectivity AMP Connectors 796867-8 — Header Plugs & Sockets

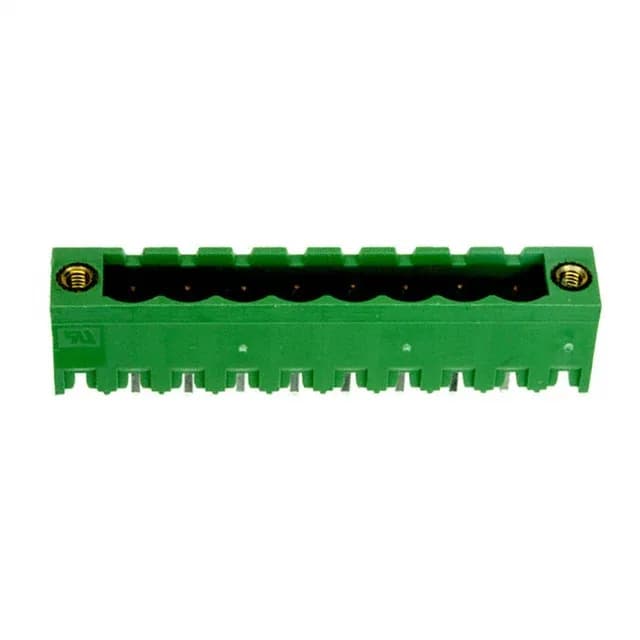

796867-8 TE Connectivity 8-Pos 5.08mm Terminal Block Header

MPN796867-8
Active

TE Connectivity AMP Connectors Buchanan 796867-8, 8-position, 5.08mm pitch, shrouded vertical header, 15 A / 300 V, through-hole solder, green PA66 housing, UL94 V-0.

$7.9700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

796867-8 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesBuchanan
MountingThrough Hole
Voltage - UL300 V
Current - UL15 A
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialCopper Alloy
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.472\" (12.00mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)

All specifications

796867-8 additional specifications
ParameterValue
PackageBulk
FeaturesMating Flange
Number of levels1
Termination styleSolder
Header orientationVertical
Contact tail length0.138\" (3.50mm)
Positions8
Positions per level8
Contact mating finishTin

Product details

Buchanan 8-Position Shrouded Header — Fit and Ratings

The 796867-8 is a Buchanan-series 8-position shrouded header from TE Connectivity, designed for terminal block interfaces. Rated 15 A at 300 V under UL conditions, with a -40°C to 110°C operating range.

Mounting and Mating Details

Vertical through-hole orientation with 0.138" (3.50 mm) solder tails. The mating flange on the header provides a positive lock against the plug, preventing vibration-induced disconnection in industrial cabinet applications.

Frequently asked questions

What is the mating connector for 796867-8?

The 796867-8 mates with a 5.08 mm pitch plug — typically a screw-clamp or spring-clamp terminal block plug from the same Buchanan series. The shrouded header includes a mating flange for positive locking.
