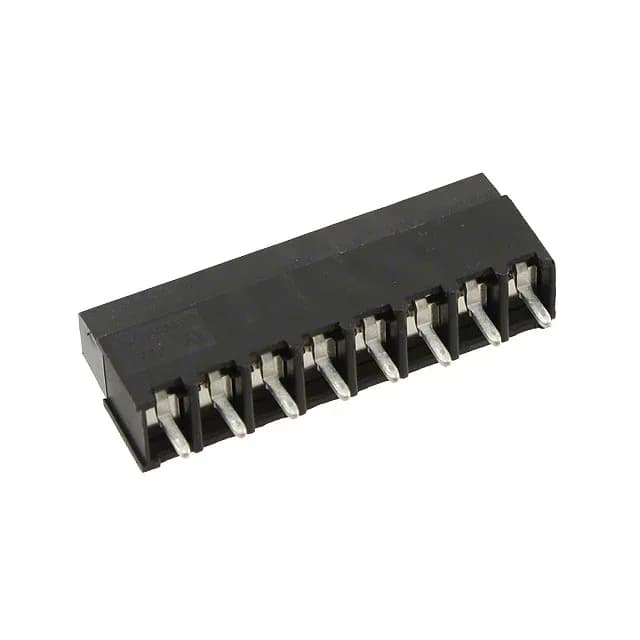

TE Buchanan 796949-8 PCB Terminal Block, 8 Pos, 5.08mm

MPN 796949-8
Active

TE Connectivity Buchanan series, 8-position PCB terminal block, 0.200" (5.08mm) pitch, side-entry, screw-rising cage clamp, 17.5 A, 300 V, through-hole, black PA66 housing.

$2.2500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

796949-8 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current17.5 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
ColorBlack
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.200\" (5.08mm)

All specifications

796949-8 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level8

Product details

8-Position PCB Terminal Block for Power Distribution

The TE Connectivity Buchanan 796949-8 is an 8-position, single-level PCB terminal block designed for fixed power distribution on a printed circuit board. It uses a side-entry, screw-rising cage clamp termination — the screw tightens a clamp that pulls the wire against a current bar, giving a gas-tight connection across 12-30 AWG wire. Rated 17.5 A per position, this block handles motor drives, power supplies, and industrial control I/O where each circuit carries a few amps of continuous load.

Installation Specs: Torque and Wire Prep

The M3 screw is tightened to 0.79 Nm (7.0 Lb-In) — that torque is enough to deform the conductor slightly for a gas-tight joint without stripping the brass-nickel screw head. The rising cage clamp accepts solid or stranded wire; for stranded wire, a ferrule is recommended below 18 AWG to prevent strand fan-out. The clamp material is brass with nickel plating, and the contact surface is brass with tin plating — tin is adequate for the moderate mating cycle count of a fixed terminal block.
