TE Connectivity AMP Connectors 796949-9

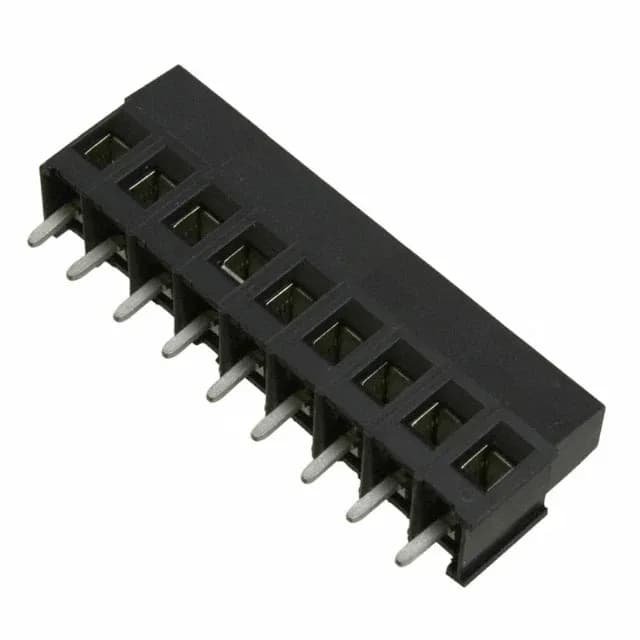

TE Connectivity 796949-9 Buchanan Terminal Block, 9 Pos

MPN 796949-9
Active

TE Connectivity Buchanan series, 796949-9, 9-position PCB terminal block, 0.200" (5.08mm) pitch, side-entry, screw rising cage clamp, 17.5 A, 300 V, through-hole, black housing.

$4.6500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

796949-9 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current17.5 A
Wire gauge12-30 AWG
Wire terminationScrew - Rising Cage Clamp
ColorBlack
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingBrass - Nickel Plated
Screw material - platingBrass - Nickel Plated
Contact material - platingBrass - Tin Plated
Pitch0.200\" (5.08mm)

All specifications

796949-9 additional specifications
ParameterValue
PackageBulk
FeaturesInterlocking (Side)
Screw threadM3
Torque - screw0.79 Nm (7.0 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level9

Product details

9-Position Side-Entry Terminal Block for PCB Power Distribution

The 0.200" (5.08mm) pitch provides generous creepage distance for the 300 V rating and simplifies PCB trace routing between positions. Rated at 17.5 A per circuit, this block handles moderate power distribution on a single board — think industrial control I/O, power supply outputs, or HVAC controller field wiring.

Screw Rising Cage Clamp and Torque Specification

Wire termination uses a screw-driven rising cage clamp, which lifts a nickel-plated brass clamp plate against the conductor as the M3 screw is tightened. The specified torque of 0.79 Nm (7.0 Lb-In) is the installation target — under-torquing risks high contact resistance and thermal runaway; over-torquing can strip the M3 thread in the PA66 housing. The clamp accepts wire from 12 AWG down to 30 AWG, covering solid and stranded conductors for both power feeds and smaller signal wires.

Interlocking Side Feature for Ganged Assemblies

The housing includes an interlocking (side) feature, allowing multiple 796949-9 blocks to be mechanically joined side-by-side into a longer terminal strip without additional brackets or end covers. This is useful when a design needs more than 9 positions but the PCB layout benefits from modular assembly — the interlock keeps the blocks aligned during soldering and field wiring.
