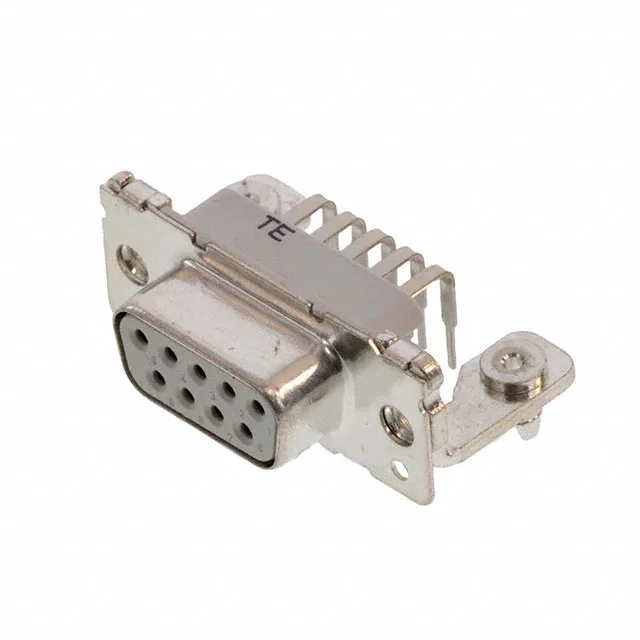

Right-Angle DB-9 Receptacle for Board-Edge Mounting
The shell size is DE (E), the standard layout for a 9-position D-Sub, and the flange features 4-40 threaded inserts for mating with the corresponding plug's hardware.
What the 2.2 A Rating Means for Signal vs Power Duty
Rated 2.2 A per contact, this is a signal-level D-Sub — the current per pin is well below the 5 A typical of standard-density D-Subs, so it's sized for logic-level interfaces, RS-232, instrumentation, or control signals rather than bus-level power. For a 9-position connector carrying mixed signal and low-power lines, the 2.2 A per contact provides adequate headroom for typical 24-28 AWG wire.
Mating Half and Pinout
This receptacle mates with a standard D-Sub plug with 9 pins, same shell size, and 4-40 threaded hardware. The pinout follows the standard D-Sub assignment: pin 1 is at the top-left when viewing the mating face with the wider side up. The 4-40 threaded inserts on the flange accept the plug's jackscrews for a vibration-resistant connection.
RoHS compliant.
