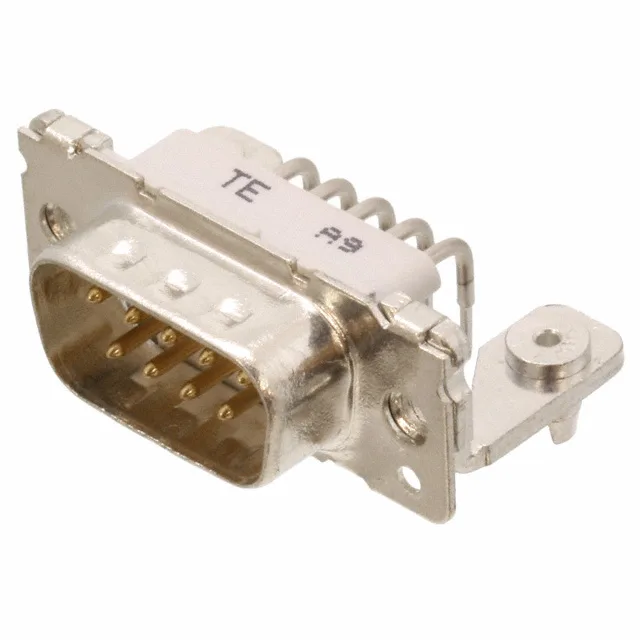

8-1393480-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPLIMITE HD-20 8-1393480-5, D-Sub Plug 9 Pos R/A

MPN8-1393480-5
Active

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 8-1393480-5, 9 positions, 2 rows, right-angle through-hole solder, 30.0µin gold contacts, board lock, shell size DE-9.

$6.4400Ref. price · indicative, final on quote
8-1393480-5 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

8-1393480-5 Technical Specifications
ParameterValue
SeriesAMPLIMITE HD-20
GenderSignal
Mounting typeThrough Hole, Right Angle
Connector typePlug, Male Pins
Current rating2.2A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolybutylene Terephthalate (PBT), Polyester
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesBoard Lock, Ground Strap, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Backset spacing0.371\" (9.43mm)
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

9-Position Right-Angle D-Sub Plug for Board-Edge I/O

The TE Connectivity AMPLIMITE HD-20 8-1393480-5 is a 9-position D-Sub plug with male pins, designed for right-angle through-hole soldering to a PCB. This is the standard DB-9 footprint — shell size 1 (DE, E) — used for RS-232 serial ports, industrial control interfaces, and instrumentation I/O where a compact, shielded connector is needed at the board edge.

Mounting and Retention — Board Lock and Right-Angle Orientation

The flange features 4-40 threaded inserts (housing/shell) for mating with the receptacle's jackscrews, providing mechanical security in high-vibration environments. The backset spacing of 0.371" (9.43 mm) sets the distance from the PCB edge to the front of the shell, which matters for enclosure cutout clearance.

Frequently asked questions

What is the datasheet for 8-1393480-5?

Engineers need the datasheet to verify pinout, dimensions, and electrical specs before design-in.

Where can I buy 8-1393480-5?

Buyers and procurement need to know authorized distributors and availability to place an order.

How much does 8-1393480-5 cost?

Price determines budget and sourcing decisions for BOM fulfillment.

Is 8-1393480-5 RoHS compliant?

RoHS status is critical for regulatory compliance and market access.

What is the mounting type of 8-1393480-5?

Mounting type affects PCB layout and mechanical fit, especially for maintenance replacements.

What is a replacement for 8-1393480-5?

If the part is obsolete or unavailable, engineers need equivalent alternatives to avoid redesign.
