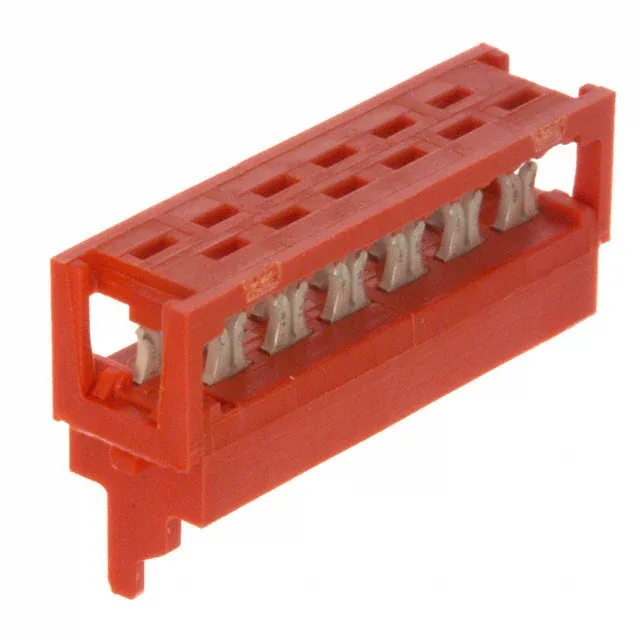

8-215083-2 — TE Connectivity AMP Connectors product photo

TE 8-215083-2 Micro-MaTch 12 Pos IDC Plug, 0.100" Pitch

MPN8-215083-2
Active

TE Connectivity Micro-MaTch series, 8-215083-2, 12-position IDC plug, 0.100" (2.54mm) pitch, 2 rows, tin male pins, 28 AWG ribbon cable, free-hanging, Tape & Reel.

$1.8000Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

8-215083-2 Technical Specifications
ParameterValue
SeriesMicro-MaTch
Wire typeRibbon Cable
GenderMale Pin
Mounting typeFree Hanging (In-Line)
Connector typePlug
Wire gauge28 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesFeed Through
Row spacing0.059\" (1.50mm)
Contact finishTin
Rows2
Positions12

Product details

The TE Connectivity 8-215083-2 is a 12-position IDC plug from the Micro-MaTch series, designed for mass-termination to 28 AWG ribbon cable. The tin-plated male pins are rated for signal-level duty; the feed-through feature lets the cable pass through the connector body for daisy-chain or pass-through wiring in harness assemblies.

This plug terminates via IDC (insulation displacement) — the 28 AWG ribbon cable is pressed onto the bifurcated contacts, which slice through the insulation and grip the conductor without stripping. The free-hanging (in-line) mount means no PCB footprint — it mates directly to a header on the board or another IDC receptacle.

Frequently asked questions

Is 8-215083-2 RoHS compliant?

Yes, the 8-215083-2 is ROHS3 compliant.

What wire gauge works with 8-215083-2?

This IDC plug is designed for 28 AWG ribbon cable.

Is 8-215083-2 compatible with 1.27mm pitch ribbon cable?

It is not compatible with 1.27mm ribbon cable.
