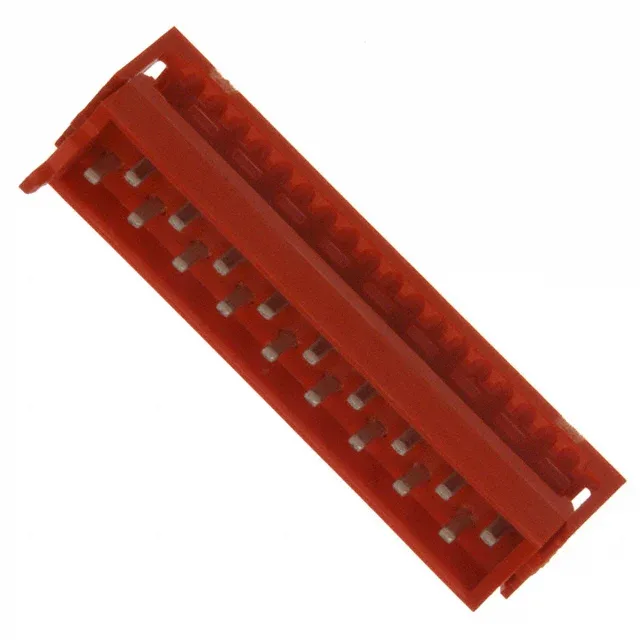

8-215083-8 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 8-215083-8 Micro-MaTch Plug, 18 Pos, IDC

MPN8-215083-8
Active

TE Connectivity Micro-MaTch series, 8-215083-8, 18-position IDC plug for 28 AWG ribbon cable, 0.100" (2.54 mm) pitch, 2 rows, tin male pins, free-hanging, red housing.

$2.3600Ref. price · indicative, final on quote
8-215083-8 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

8-215083-8 Technical Specifications
ParameterValue
SeriesMicro-MaTch
Wire typeRibbon Cable
GenderMale Pin
Mounting typeFree Hanging (In-Line)
Connector typePlug
Wire gauge28 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesFeed Through
Row spacing0.059\" (1.50mm)
Contact finishTin
Rows2
Positions18

Product details

The TE Connectivity 8-215083-8 is an 18-position IDC plug from the Micro-MaTch series, designed for terminating 28 AWG ribbon cable. The red housing is free-hanging (in-line), and the contacts are tin-plated male pins.

Key Features and Termination

The cable is pressed onto the fork contacts, which pierce the insulation and make contact with the conductor. This plug accepts 28 AWG ribbon cable only; the IDC slot geometry is sized for that gauge. The feed-through feature means the cable passes straight through the connector body, which is typical for daisy-chain or pass-through wiring in a harness.

Frequently asked questions

What is the mating connector for 8-215083-8?

The 8-215083-8 is a plug (male pins) that mates with a Micro-MaTch receptacle housing — the female socket side. The exact mating part number depends on position count and locking feature; check the Micro-MaTch series for a 2-row, 18-position receptacle with IDC termination.

Does 8-215083-8 work with standard ribbon cable?

Yes, it is designed for standard 28 AWG ribbon cable with 0.100" (2.54 mm) conductor spacing and 0.059" (1.50 mm) row spacing — the common pitch for 28 AWG flat cable.
