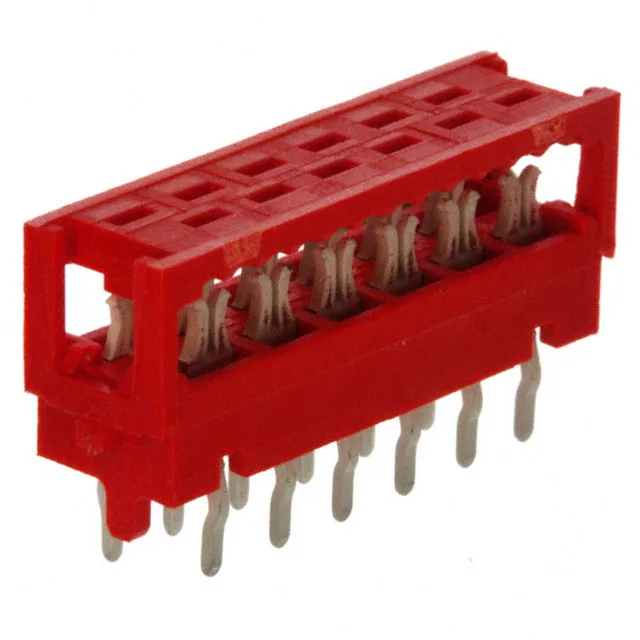

TE Micro-MaTch 8-215570-2, 12-Pos IDC DIP Header, Red

MPN 8-215570-2
Active

TE Connectivity Micro-MaTch series, IDC DIP header, 12 positions, 2 rows, 0.050" cable pitch, 0.100" board-side pitch, 28 AWG, press-fit through-hole, tin contacts, red housing.

$2.0000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

8-215570-2 specifications
ParameterValue
SeriesMicro-MaTch
MountingThrough Hole, Press-Fit
Connector typeRibbon Cable, DIP Header
Wire gauge28 AWG, Stranded or Solid
Cable pitch0.050\" (1.27mm)
Cable terminationIDC
ColorRed
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesFeed Through
Row spacing0.100\" (2.54mm)
Contact finishTin
Rows2
Board-Side pitch0.100\" (2.54mm)
Positions12

Product details

12-Position IDC DIP Header — Press-Fit, Dual-Pitch Ribbon Cable Interface

Termination is insulation-displacement (IDC) on the cable end, while the board interface uses a through-hole, press-fit mounting — no soldering required for the header pins. The red housing is keyed by color for visual line identification in multi-cable harnesses.

Press-Fit Board Retention and IDC Termination

This suits backplane or high-reliability assemblies where solderless termination is preferred for rework or thermal stress management. The IDC termination on the cable side simultaneously pierces all 12 conductors of a 0.050" pitch ribbon cable in one press operation — no wire stripping or individual crimping. The feed-through feature allows the cable to pass through the header body, simplifying daisy-chain routing in the harness.

Dual-Pitch Layout: 0.050" Cable to 0.100" Board

For the board layout engineer, the footprint is a standard 12-pin DIP pattern — two rows of six pins on 0.100" pitch — with the press-fit hole size specified per the manufacturer's application drawing.

No official cross-reference or direct second-source is on record; the 16-position gray sibling (1-216791-6) is a position-count alternative, not a functional substitute for a 12-position BOM line.
