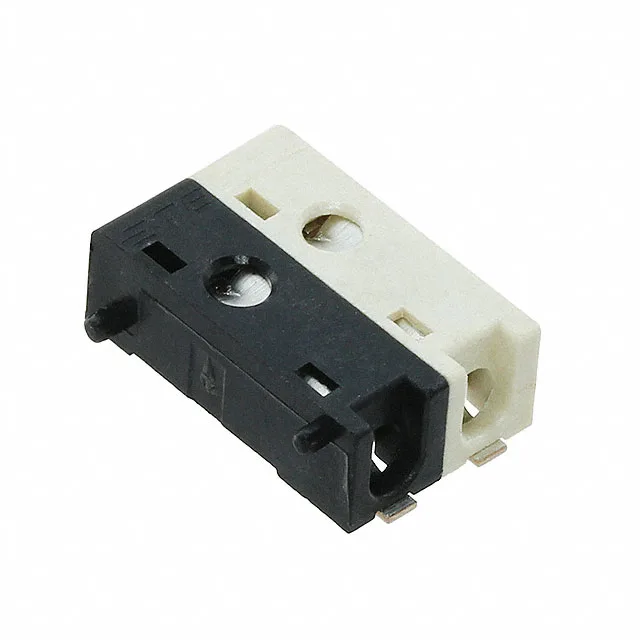

TE Connectivity 8-2834006-2, Poke-In Wire Receptacle, 2 positions, 0.157" (4.00mm) pitch, Surface Mount Right Angle, Tin contacts, 5A/6A, 400V, -40°C to 125°C.
| Parameter | Value |
|---|---|
| Mounting type | Surface Mount, Right Angle |
| Connector type | Receptacle, Poke-In Wire |
| Voltage rating | 400V |
| Current rating | 5A, 6A |
| Wire gauge | 18 AWG, 20 AWG, 22 AWG |
| Operating temperature | -40°C ~ 125°C |
| Housing color | Black, Natural |
| Contact material | Copper Alloy |
| Housing material | Resin |
| Pitch | 0.157\" (4.00mm) |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Contact finish | Tin |
| Positions | 2 |
This is a poke-in wire connector, not a crimp-and-insert housing.
The receptacle accepts 18 AWG, 20 AWG, or 22 AWG wire. The current rating splits by gauge: 6 A on 18 AWG, 5 A on 20 AWG or 22 AWG.
The resin housing is rated for the operating temperature range -40°C to 125°C.
The 8-2834006-2 accepts 18 AWG, 20 AWG, and 22 AWG wire. The current rating is 6 A on 18 AWG and 5 A on 20 AWG or 22 AWG.
