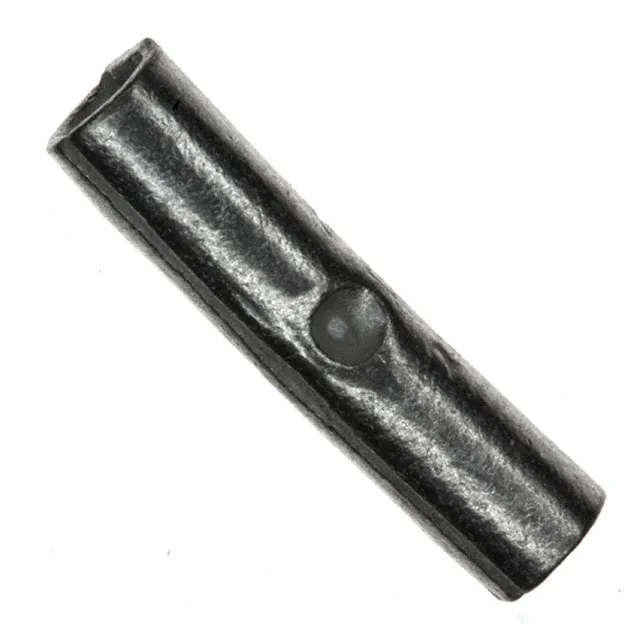

TE Connectivity AMP Solistrand butt splice, order code 8-31818-1, 16-22 AWG, non-insulated, brazed seam, serrated mating area, crimp termination, 2 wire entries.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Terminal type | Butt Splice, Inline, Individual Openings |
| Wire gauge | 16-22 AWG |
| Number of wire entries | 2 |
| Package | Bulk |
| Features | Brazed Seam, Serrated Mating Area |
| Insulation | Non-Insulated |
| Termination | Crimp |
The 8-31818-1 is a Solistrand-series butt splice from TE Connectivity AMP Connectors, designed for inline joining of two wires in the 16-22 AWG range. The non-insulated barrel uses a brazed seam and serrated mating area to improve crimp retention and reduce pull-out risk — a splice is a fault waiting to happen without a reliable crimp.
RoHS and REACH compliance documentation is available from the manufacturer for this part.
