Crimp termination for 14-16 AWG

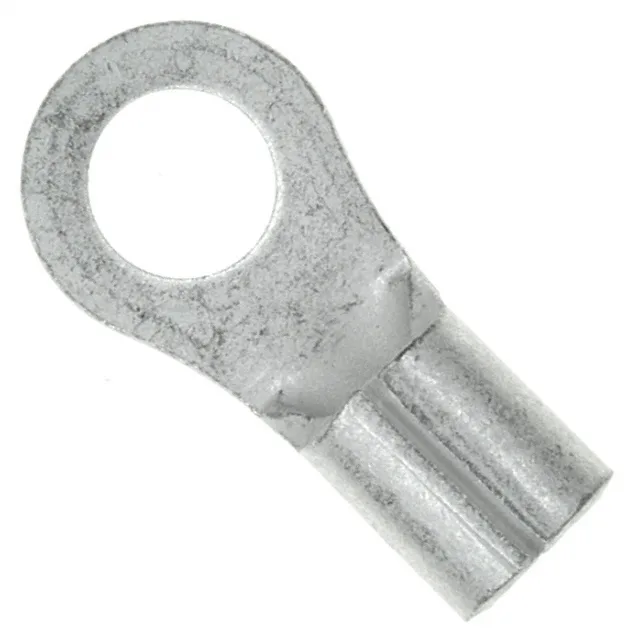

The 8-34567-1 is the 14-16 AWG member of TE Connectivity's Solistrand ring terminal line, accepting a #10 stud and terminating with a standard crimp tool. The 0.048" (1.22mm) thick copper barrel with a brazed seam and serrated inner surface grips the conductor under crimp pressure; the tin plating resists corrosion in non-insulated service.
Stud size across the Solistrand range
Within the Solistrand series the 8-34567-1's #10 stud size sits between the #6 of the 8-34105-1 and the 3/8" of the 8-34115-1 — the 0.343" (8.71mm) outer width and 0.723" (18.36mm) overall length scale with stud size, so match the terminal to the stud diameter and available clearance.
