TE Connectivity AMP Connectors 8-487937-0 — FFC / FPC Housings

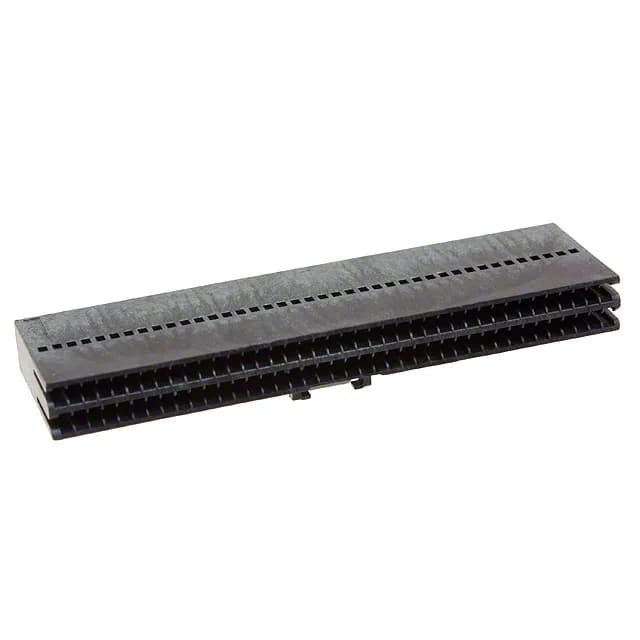

8-487937-0 TE AMPMODU System 50 FFC Housing, 80 Pos, 1.27mm

MPN8-487937-0
Active

TE Connectivity AMPMODU System 50, FFC receptacle housing, 80 positions, 0.050" (1.27mm) pitch, dual-row, latch lock, black polyester UL94 V-0, rated 1.5 A per contact at 100 V, operating -55°C to 105°C.

$5.8400Ref. price · indicative, final on quote
RoHSNot applicable
SeriesAMPMODU System 50
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

8-487937-0 specifications
ParameterValue
SeriesAMPMODU System 50
Connector typeHousing for Female Contacts
Flat flex typeFFC
Voltage rating100 V
Current rating1.5 A
Operating temperature-55°C ~ 105°C
Housing colorBlack
Housing materialPolyester
Material flammability ratingUL94 V-0
NoteContacts Not Included
Pitch0.050\" (1.27mm)
PackageBulk
Rows2
Locking featureLatch Lock
FFC, FCB thickness0.05-0.08mm
Positions80

Product details

80-position FFC housing at 1.27 mm pitch

The 8-487937-0: This is the AMPMODU System 50 receptacle housing for 80-circuit FFC interconnects. The 0.050" (1.27 mm) pitch and dual-row layout set the board footprint and the mating interface — the same pitch runs through the entire System 50 family, so the matching header shares the contact spacing.

For the matching header, look for AMPMODU System 50 headers with the same 0.050" pitch and 80 positions.

The base product number is 487937; any variant with a different contact count or plating will carry a different suffix.

Frequently asked questions

What is 8-487937-0 used for?

It is an FFC receptacle housing from the AMPMODU System 50 series, designed to hold female contacts for a flat flex cable interconnect. It mates with a matching 80-position header at 1.27 mm pitch.

Does 8-487937-0 come with contacts?

No.
