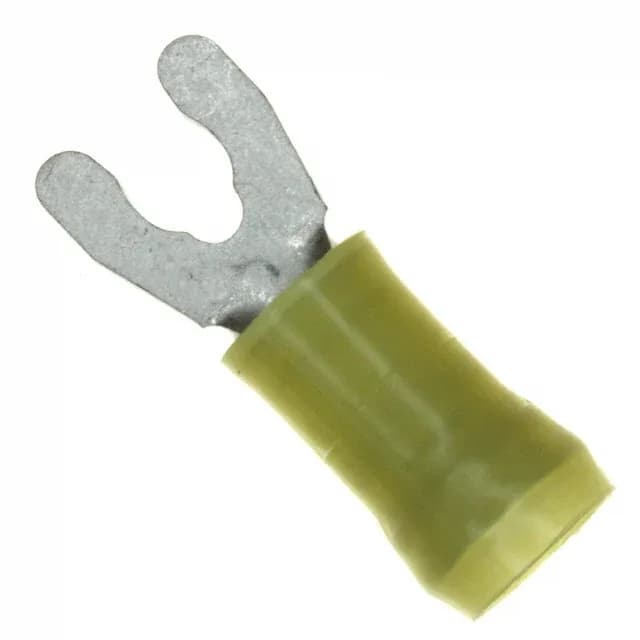

TE Connectivity AMP Connectors PIDG spade terminal, order code 8-52942-1, 10-12 AWG, #8 stud size, tin-plated phosphor bronze contact, insulated, free hanging, crimp termination, yellow.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Phosphor Bronze |
| Width - outer edges | 0.375\" (9.53mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 1.052\" (26.72mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |
| Length - termination | 0.601\" (15.27mm) |
| Tongue inside opening | 0.164\" (4.17mm) |
| Length - ring center to termination | 0.276\" (7.01mm) |
The 8-52942-1 is a PIDG-series spade terminal from TE Connectivity AMP Connectors, accepting 10-12 AWG wire with a #8 stud size. The tin-plated phosphor bronze contact is crimped onto the wire; the yellow nylon insulation sleeve covers the barrel and part of the spade tongue. Serrated inner barrel grips the conductor strands during crimp, reducing cold-flow creep over temperature cycles.
The terminal accepts 10-12 AWG wire.
The insulation is yellow polyamide (nylon).
