TE Connectivity AMP Connectors 8-5353164-6

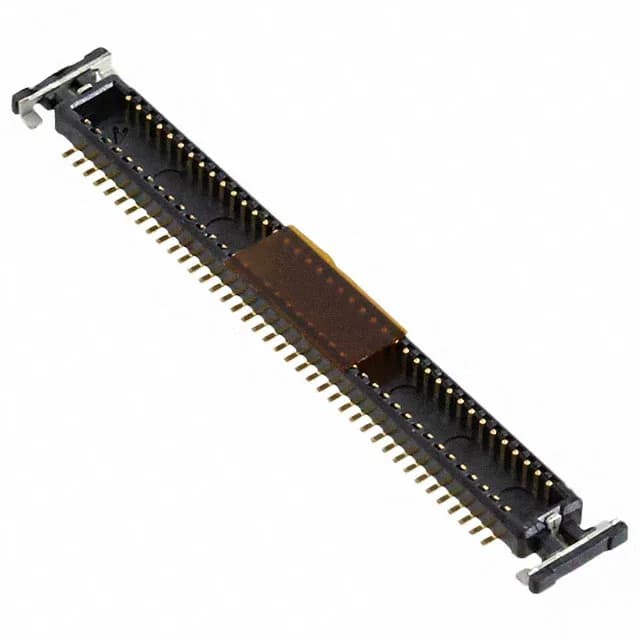

TE Connectivity 8-5353164-6 Fine Stack FS Plug, 80 Pos

MPN 8-5353164-6
Active

TE Connectivity Fine Stack (FS) plug, outer shroud contacts, 80 positions, 2 rows, 0.020" (0.50mm) pitch, 1.5mm mated stack height, SMT, gold 30.0µin contacts, solder retention, Tape & Reel.

$12.2300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesFine Stack (FS)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

8-5353164-6 specifications
ParameterValue
SeriesFine Stack (FS)
MountingSurface Mount
Connector typePlug, Outer Shroud Contacts
Height above board0.043\" (1.08mm)
Mated stacking heights1.5mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions80
Contact finish thickness30.0µin (0.76µm)

Product details

0.50mm pitch mezzanine plug, 80 positions, 1.5mm stack

The mated stacking height is 1.5mm — tight enough for slim handheld or portable device enclosures where every millimeter of z-height is budgeted.

At 0.50mm pitch, trace routing between pads gets tight — you'll need at least a two-layer board to fan out the inner row, and the via-in-pad or microvia approach is common for the escape. The 1.5mm mated stack height means the plug and its matching receptacle sit close to the board surface; keep the keep-out zone on the opposing board clear of tall components that would interfere with the shroud.

80 positions — match the BOM circuit count exactly

80 circuits at 0.50mm pitch is a high-density interconnect. The plug mates with the matching Fine Stack receptacle (same pitch, same 80 positions) to form the mezzanine pair. Verify the BOM position count matches before committing; a 1-position mismatch means a different board layout.

MPN
8-5353164-6
