TE Connectivity AMP Connectors 84534-4 — FFC / FPC Cable Assemblies

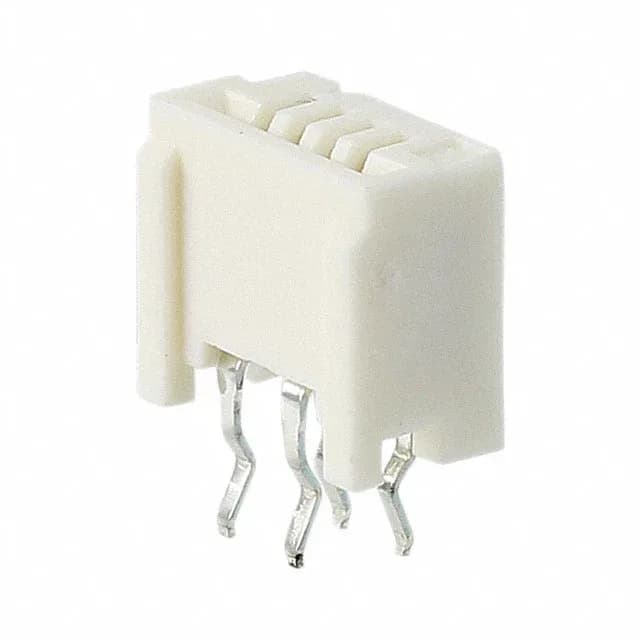

84534-4 TE Connectivity FFC Connector 4 Pos 1.25mm Pitch

MPN84534-4
Active

TE Connectivity AMP Connectors 84534-4, FFC vertical connector, 4 positions, 1.25 mm pitch, tin-plated phosphor bronze contacts, 1 A, through-hole kinked-pin termination, -40°C to 85°C, ROHS3 compliant.

$0.3400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 84534-4 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

84534-4 specifications
ParameterValue
MountingThrough Hole
Cable end typeTapered
Flat flex typeFFC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating50V
Current rating1A
Operating temperature-40°C~85°C
Housing colorWhite
Contact materialPhosphor Bronze
Housing materialPolybutylene Terephthalate (PBT), Glass Filled
Height above board0.307\" (7.80mm)
Pitch0.049\" (1.25mm)
PackageBulk
TerminationKinked Pin
Contact finishTin
FFC, FCB thickness0.30mm
Positions4

Product details

4-Position Vertical FFC at 1.25 mm Pitch

The 84534-4 is a 4-position vertical FFC connector on 1.25 mm pitch — the board footprint matches a single-row of through-hole holes spaced 0.049" apart. The vertical orientation places the FFC perpendicular to the PCB, saving board-edge real estate in a compact enclosure.

Tin Contacts and Mating Cycle Budget

Tin contact finish on the 84534-4 means the mating interface is rated for a limited number of insertion cycles — typically under 20 for tin-on-tin in production use. The 0.30 mm FFC thickness is fixed; the connector accepts only that cable end type.

It is ROHS3 compliant.

Frequently asked questions

What is the closest pin-compatible alternative to 84534-4?

The 84534-4 is a 4-position vertical FFC connector at 1.25 mm pitch — any replacement would need to match the pitch, position count, and through-hole footprint.
