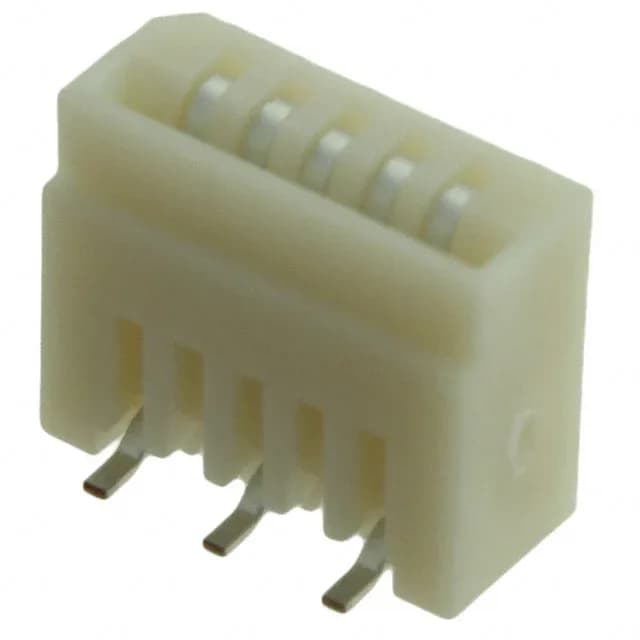

TE Connectivity AMP Connectors 84982-5, FFC/FPC vertical SMD connector, 5 positions, 1.00 mm pitch, tin-plated phosphor bronze contacts, rated 1 A at 125 V, -20°C to 85°C, beige nylon housing, 0.30 mm FPC thickness, 5.59 mm above board.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -20°C ~ 85°C |
| Housing color | Beige |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Height above board | 0.220\" (5.59mm) |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 5 |
The 84982-5: Five-position vertical SMD connector for FFC or FPC with 0.30 mm thickness. Tin-plated phosphor bronze contacts suit low-cycle applications — a connector mated once at build does not need gold.
0.039" (1.00 mm) pitch, 5 positions — a low-count vertical FFC/FPC connector for signal interconnects.
