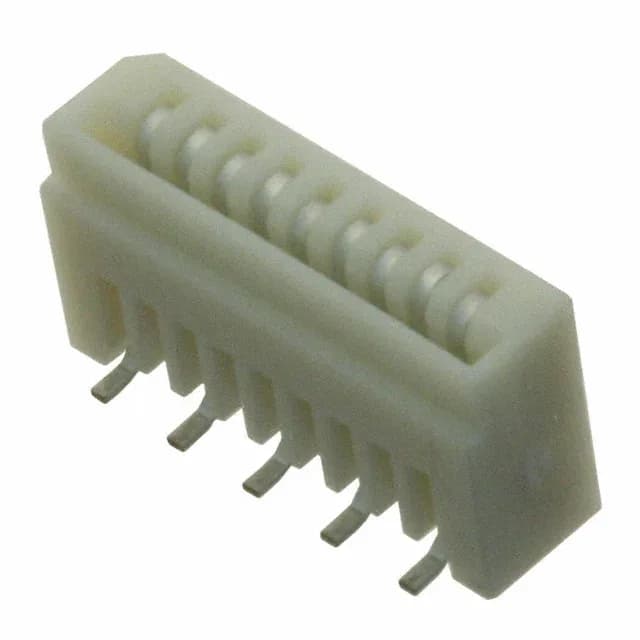

TE Connectivity AMP Connectors 84982-9, FFC/FPC connector, vertical SMD, 9 positions, 1.00 mm pitch, tin-plated phosphor bronze contacts, 1 A, 125 V, -20°C to 85°C.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -20°C~85°C |
| Housing color | Beige |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Height above board | 0.220\" (5.59mm) |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 9 |
The 84982-9 is a 9-position, vertical SMT FFC/FPC connector from TE Connectivity AMP Connectors, part of the 84982 series. It accepts a 0.30 mm thick flat flexible cable with contacts on one side, mated in a straight (vertical) orientation.
The 1.00 mm pitch demands a 0.50 mm trace/space capability on the PCB for fan-out between pads.
Yes, the 84982-9 is RoHS3 compliant.
