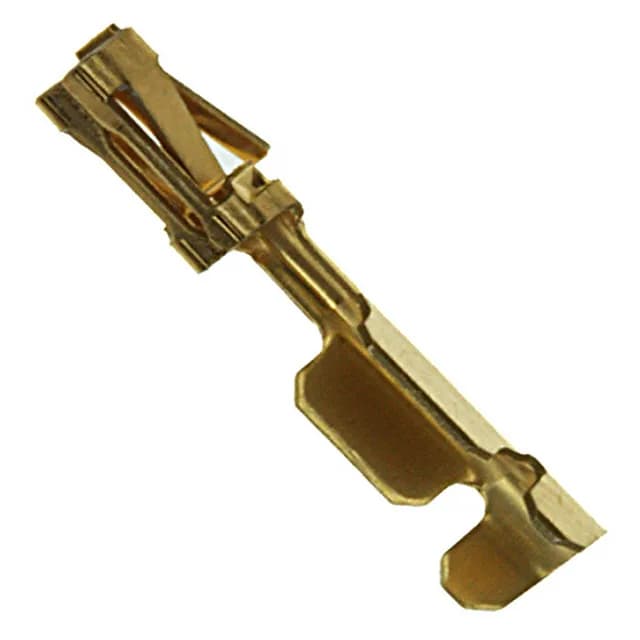

TE Connectivity AMP Connectors AMPMODU Mod IV socket, order code 86016-5, 20-24 AWG, gold-plated contact, 15.0µin (0.38µm) plating, crimp termination, Bulk package.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Wire gauge | 20-24 AWG |
| Package | Bulk |
| Pin or socket | Socket |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 15.0µin (0.38µm) |
The 86016-5 is a socket contact in TE's AMPMODU Mod IV series, crimp-terminated for 20-24 AWG wire.
The 86016-5 carries gold plating, while same-series sockets 1-1326032-0 and 929989-8 use tin plating — gold suits higher mating-cycle duty or corrosive environments. The 86016-5 accepts 20-24 AWG; 1-1326032-0 takes 16 AWG and 929989-8 takes 17-20 AWG, so wire-gauge range is the primary selection axis within the series.
The 86016-5 is a gold-plated socket for 20-24 AWG; 1-1326032-0 is a tin-plated socket for 16 AWG. They are not direct substitutes — wire gauge and plating differ.
The 86016-5 is ROHS3 compliant per TE Connectivity AMP Connectors.
