Crimp termination, 22-26 AWG, gold-plated socket

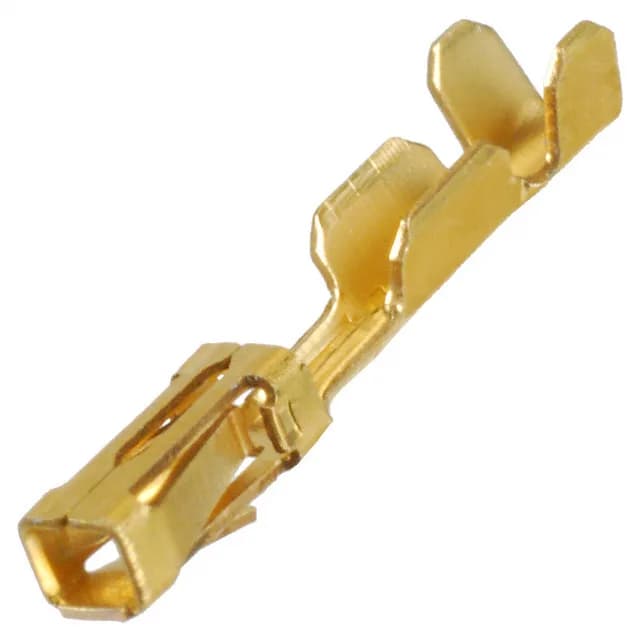

The 87667-5 is the gold-plated socket member of TE's AMPMODU Mod IV crimp contact line, accepting 22-26 AWG wire with a standard crimp termination.
TE 87667-5 AMPMODU Mod IV Crimp Socket, 22-26 AWG, Gold
MPN87667-5
Active
TE Connectivity AMP Connectors AMPMODU Mod IV socket contact, order code 87667-5, 22-26 AWG, gold-plated, crimp termination, bulk package.
$0.7400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod IV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Wire gauge | 22-26 AWG |
| Package | Bulk |
| Pin or socket | Socket |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 15.0µin (0.38µm) |
Product details
Frequently asked questions
Will 87667-5 drop into a panel that was specified around 1-1326032-0 without rewiring?
No — 1-1326032-0 is a 16 AWG tin-plated socket in a different power contact series; the 87667-5 is 22-26 AWG and gold-plated. The wire gauge range and contact geometry differ, so a direct drop-in without rewiring is not supported.
