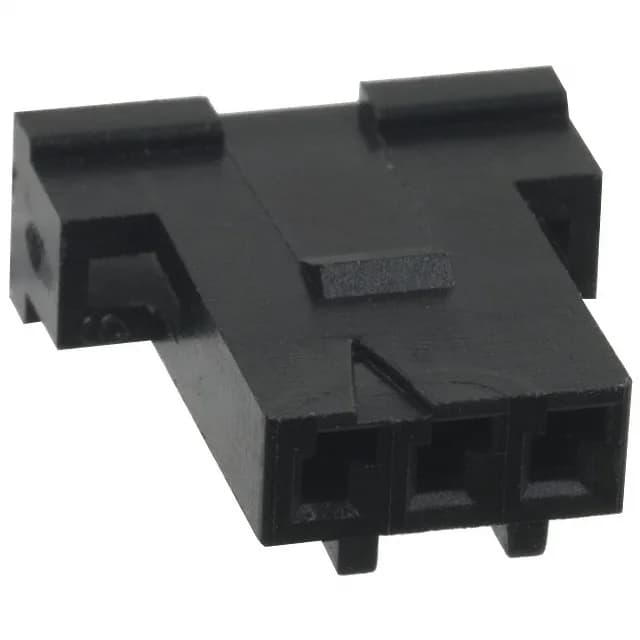

TE Connectivity AMP Connectors 88859-9, FFC receptacle housing, 3 positions, 0.100" (2.54 mm) pitch, single row, detent lock, black PBT glass-filled housing, UL94 V-0, contacts not included.
| Parameter | Value |
|---|---|
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Operating temperature | -65°C ~ 105°C |
| Housing color | Black |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Detent Lock |
| FFC, FCB thickness | 0.05-0.13mm |
| Positions | 3 |
Rated 1.5 A per contact at 300 V, this housing is suited for signal-level circuits where current draw stays low. The detent lock provides positive retention once mated, reducing the risk of disconnection under vibration.
The 88859-9 is sourced to order through independent distribution. Submit an RFQ with your target quantity; current pricing and lead time are confirmed at quote time. No stock-holding claim — availability is verified per request.
No — the 88859-9 is a housing for female contacts and ships empty.
The pitch is 0.100" (2.54 mm), which is the centre-to-centre spacing between adjacent contact positions. This matches standard 2.54 mm pitch FFC cables and ribbon connectors.
