PCI Express Card Edge Connector, 36 Positions

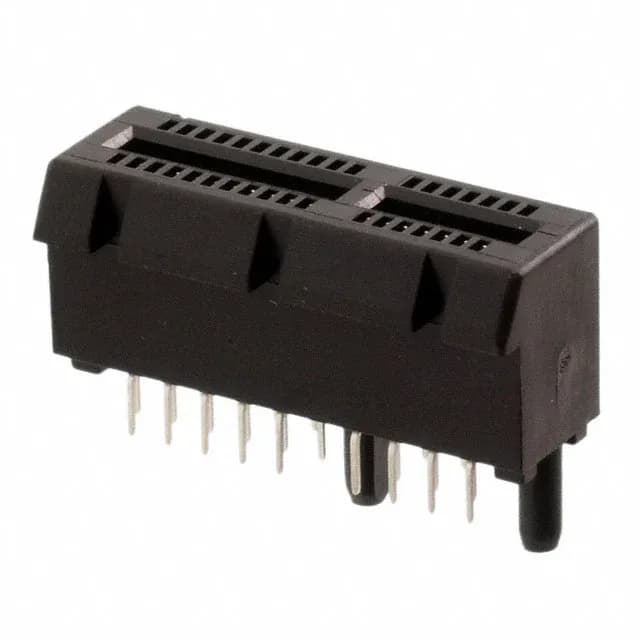

The TE Connectivity 9-1734774-1 is a 36-position female PCI Express card edge connector on a 0.039" (1.00 mm) pitch. It accepts a standard PCIe add-in card of 0.062" (1.57 mm) thickness, with dual-row readout matching the x1, x4, or x8 edge finger layout. The through-hole termination uses staggered solder tails to ease board routing between the two rows. The housing is molded from polyamide (PA46) — a high-temperature nylon that withstands reflow soldering — and includes a board guide and locking ramp. The locking ramp provides positive retention against the card edge notch, holding the card in place under vibration without a separate latch. The board guide aligns the card during insertion, protecting the cantilever contacts from stubbing.
Board Layout and Footprint Notes
The 1.00 mm pitch is tight. The staggered solder tail pattern spreads the through-hole vias across two rows.
