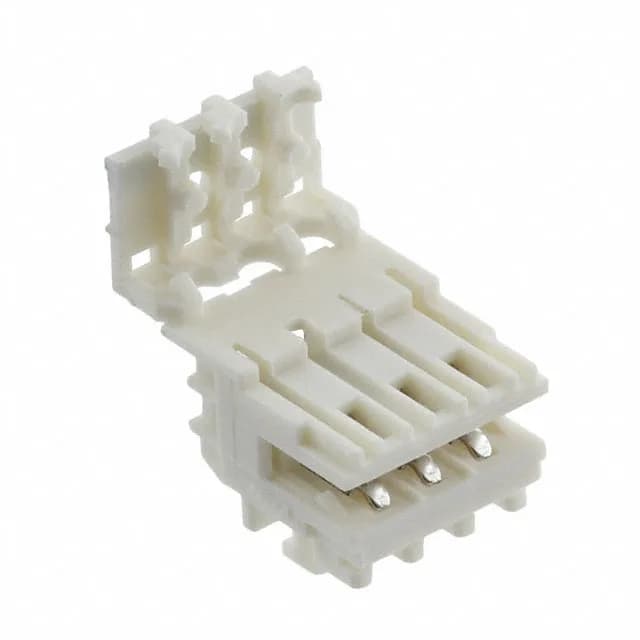

DuoPlug IDC Receptacle – 3-Position Wire-to-Board Connector
It uses a 0.098" (2.50mm) pitch, accepts 22-24 AWG discrete wire, and terminates via insulation displacement — no crimp tool needed for the wire side.
This eliminates per-wire crimping and the associated tooling. The 22-24 AWG range covers common signal-level wiring for internal harnesses, sensors, and low-current power distribution.
Board Lock and Mating to PCB
The board lock feature anchors the receptacle to the PCB before soldering, preventing shift during reflow or wave solder. The 'mates to PCB' designation confirms this is a wire-to-board connector — the receptacle mounts directly to the board, and the mating half is a header (not included).
