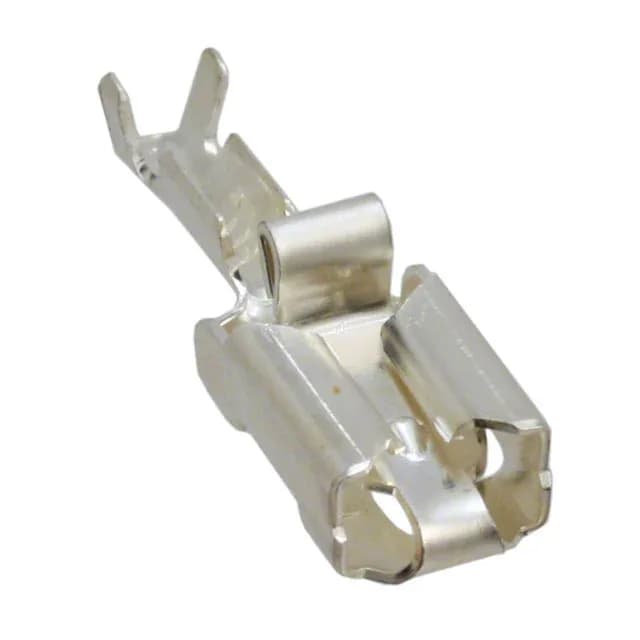

TE Connectivity AMP Connectors 927852-2 — Quick-Disconnect Terminals

TE 927852-2 Quick-Disconnect Terminal, 0.250" Tab, 17-20 AWG

MPN927852-2
Active

TE Connectivity AMP Connectors Mark I quick-disconnect terminal, order code 927852-2, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 17-20 AWG, non-insulated, crimp termination, free hanging (in-line), phosphor bronze contact.

$0.3200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 927852-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMark I
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

927852-2 specifications
ParameterValue
SeriesMark I
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge17-20 AWG
Tab width0.250\" (6.35mm)
Contact materialPhosphor Bronze
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Length - overall0.878\" (22.30mm)

Product details

Female 0.250" tab, crimp-on

The 927852-2 is the female member of TE's Mark I quick-disconnect terminal line, accepting 17-20 AWG wire with a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. The phosphor bronze contact is crimp-terminated and non-insulated, rated for free-hanging (in-line) mounting.

Same-series peer: male tab vs female

Within the Mark I series the 927852-2 (female, 17-20 AWG) mates with the 927899-2 (male, 18-22 AWG) at the same 0.250" tab width — the male terminal accepts a slightly narrower wire range, so the female side carries the heavier gauge in the pair.
