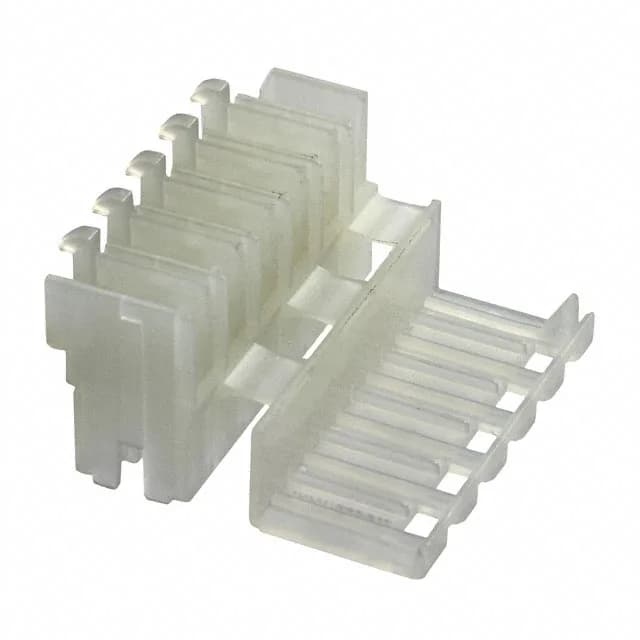

6-position, 5.00 mm pitch card edge housing – contacts ordered separately
The 928017-1 is a 6-position card edge housing from the TE Connectivity MT-Edge series, designed for non-specified dual edge cards. The 0.197 inch (5.00 mm) pitch provides wider spacing than standard 0.100 inch card-edge connectors, which helps with creepage and clearance in power or signal applications. The housing is free hanging (in-line) and includes a latch lock feature to secure the connection against vibration. The card thickness spec is 0.059 inch (1.50 mm) – do not use with 0.062 inch cards without verifying fit. Note: contacts are not included.
Latch lock and free-hanging mounting for field assembly
Material flammability rating is UL94 V-2, which is acceptable for most indoor equipment but not the highest flame retardancy class – confirm your enclosure requirement.
