TE Connectivity AMP Connectors 928901-4 — Quick-Disconnect Terminals

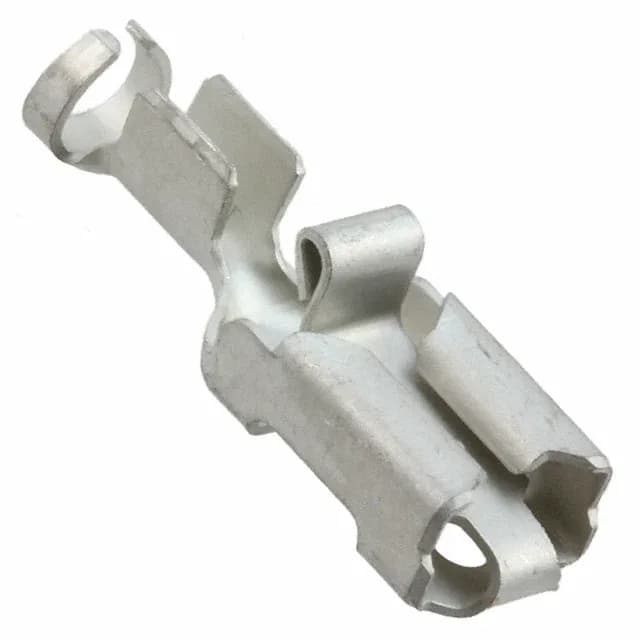

TE 928901-4 Mark I Quick-Disconnect Terminal, 0.250" Tab

MPN928901-4
Active

TE Connectivity AMP Connectors Mark I quick-disconnect terminal, order code 928901-4, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 13.5-17 AWG, tin-plated phosphor bronze, non-insulated, crimp termination, free hanging, bulk.

$0.4700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 928901-4 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMark I
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

928901-4 specifications
ParameterValue
SeriesMark I
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge13.5-17 AWG
Tab width0.250\" (6.35mm)
Contact materialPhosphor Bronze
GenderFemale
PackageBulk
InsulationNon-Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.878\" (22.30mm)
Insulation diameter0.118\" ~ 0.170\" (3.00mm ~ 4.32mm)

Product details

Tab dimensions and wire range

The 928901-4 is the female quick-disconnect terminal in TE's Mark I series, accepting 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. It crimps onto 13.5-17 AWG wire and is rated for free-hanging in-line installation with a tin-plated phosphor bronze contact.

Series fit and peer comparison

Within the 0.250" tab quick-disconnect family, the 928901-4's 13.5-17 AWG range sits between the 17-20 AWG of 1-1659250-0 and the 15-18 AWG of 1-1627194-4 — all share the same 0.250" tab width and free-hanging mounting, so the wire gauge determines the fit.

Frequently asked questions

Will 928901-4 drop into a panel that was specified around 1-1659250-0 without rewiring?

Both terminals share the same 0.250" tab width and free-hanging mounting, but the 928901-4 accepts 13.5-17 AWG wire while 1-1659250-0 accepts 17-20 AWG — the wire gauge range differs, so the wire size must match the terminal's range.
