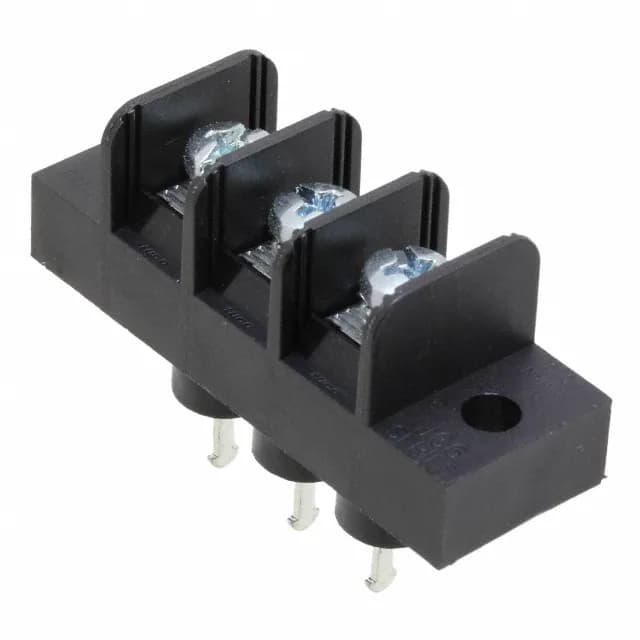

TE Connectivity Buchanan JC6-T307-03 barrier strip, 3 circuits, 0.375" (9.53mm) pitch, 20A, 300V, 12-22 AWG, screw termination, flange, UL94 V-0, black.
| Parameter | Value |
|---|---|
| Series | JC6, Buchanan |
| Barrier type | 2 Wall (Dual) |
| Mounting | Chassis, Panel |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 20A |
| Wire gauge | 12-22 AWG |
| Terminal screw finish | Zinc, Clear Chromate |
| Number of wire entries | 3 |
| Terminal screw material | Steel |
| Operating temperature | 105°C |
| Color | Black |
| Parameter | Value |
|---|---|
| Material - insulation | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.375\" (9.53mm) |
| Package | Bulk |
| Features | Flange |
| Rows | 1 |
| Top termination | Screws |
| Bottom termination | Solder Turret, Insulated |
| Number of circuits | 3 |
The TE Connectivity Buchanan JC6-T307-03 is a 3-circuit barrier strip with a 0.375" (9.53mm) pitch, rated 20A at 300V. It accepts 12-22 AWG wire and terminates via screws on the top with solder turret, insulated bottom connections. The dual-wall barrier design provides isolation between adjacent terminals, and the integral flange allows chassis or panel mounting.
The JC6-T307-03 is active and available to order.
The pitch is 0.375" (9.53mm).
It accepts 12-22 AWG wire.
Yes, it is ROHS3 compliant.
