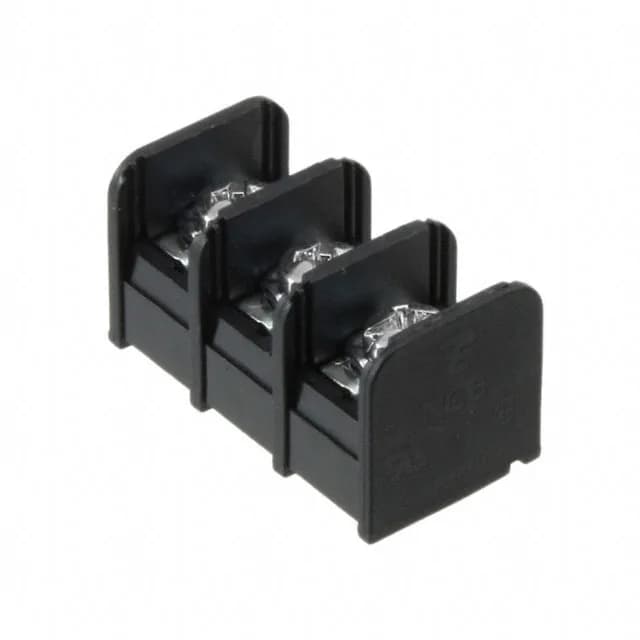

TE Connectivity AMP Connectors NC6-P108-03

NC6-P108-03 Barrier Strip, 3 Circuits, 0.375" Pitch, 20A

MPN NC6-P108-03
Active

Buchanan NC6 barrier strip, 3 circuits, 0.375" (9.53mm) pitch, 20A, 300V, through-hole, screws with captive plate, black UL94 V-0 housing.

$2.0100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesNC6, Buchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

NC6-P108-03 key specifications
ParameterValue
SeriesNC6, Buchanan
Barrier type2 Wall (Dual)
MountingThrough Hole
Terminal block typeBarrier Block
Voltage rating300V
Current rating20A
Wire gauge12-22 AWG
Terminal screw finishZinc
Number of wire entries3
Terminal screw materialSteel
Operating temperature-40°C ~ 105°C
ColorBlack

All specifications

NC6-P108-03 additional specifications
ParameterValue
Material - insulationPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
Pitch0.375\" (9.53mm)
PackageBulk
Rows1
Top terminationScrews with Captive Plate
Bottom terminationPC Pin
Number of circuits3

Product details

3-Circuit Barrier Block for Power Distribution

The NC6-P108-03 is a 3-circuit barrier strip from the Buchanan NC6 series, built for point-to-point power distribution in control panels, power supplies, and industrial equipment. The 0.375" (9.53mm) pitch gives each terminal enough physical separation to handle the 300V rating without flashover, and the 20A per-circuit current rating covers most branch-circuit loads inside an enclosure. The dual-wall barrier design isolates adjacent terminals — a safety feature that prevents accidental bridging during wiring.

20A per Circuit at 300V — Sized for Branch Power

Each circuit is rated 20A at 300V. The 12-22 AWG wire range covers solid and stranded conductors. The screws with captive plate clamp the wire without a separate pressure pad.

Through-Hole PC Pin Termination

The single-row layout with 3 wire entries keeps the board footprint compact: three 0.375"-pitch holes in a line. The black polyamide housing is keyed by the terminal positions only; there is no polarising feature, so the orientation on the board is set by the hole pattern.
