IEC 320-C14 Filtered Inlet with Integrated Switch and Twin Fuse Holder

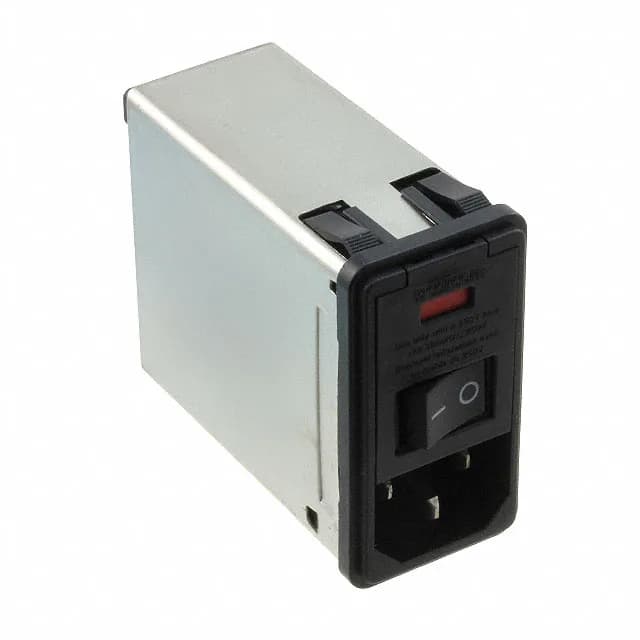

The TE Connectivity Corcom PS0S0DMXE is a filtered power entry module from the P Series, combining an IEC 320-C14 receptacle with male blades, a commercial-grade EMI/RFI filter, an On-Off switch, and a twin fuse holder into a single panel-mount unit. This 3-position module is rated 10 A at 120/250 VAC for both the filter and the appliance inlet, meaning the filter does not introduce a current bottleneck below the inlet rating. The built-in switch allows the equipment to be powered down at the panel without a separate switch component, and the twin fused holder accepts two fuses (not included) for line and neutral protection. Quick-connect 0.187" (4.7 mm) tabs simplify field wiring, while the snap-in panel mount fits sheet metal between 0.031" and 0.114" (0.79 mm to 2.90 mm) thick. The shielded construction and compliance with CSA, UL, and VDE make it suitable for commercial and industrial equipment requiring integrated line filtering and overcurrent protection.
10 A at 120/250 VAC — Filter and Inlet Share the Same Current Ceiling
Both the filter and the appliance inlet are rated 10 A, so the filter does not derate the inlet's current capacity. The voltage rating of 120/250 VAC covers single-phase and split-phase line voltages common in North America and Europe. For a 10 A load at 250 VAC, the module handles up to 2500 VA — enough for most small to mid-power equipment like test gear, medical devices, or industrial controllers.
Built-In On-Off Switch and Twin Fuse Holder Save Panel Space
The integrated On-Off switch eliminates the need for a separate panel-mount switch, reducing wiring and cutout count. The twin fuse holder accepts two 5x20 mm fuses (not included), typically for line and neutral protection. This consolidation into one module simplifies BOM and assembly — the panel builder cuts one hole, wires one connector, and gets filtering, switching, and fusing in one pass.
Panel Mount with Snap-In Retention and Wide Thickness Range
The snap-in mounting style secures the module without screws or nuts — it clips into the panel cutout. The accepted panel thickness range of 0.031" to 0.114" (0.79 mm to 2.90 mm) covers common steel and aluminum sheet gauges.
Termination: Quick-Connect 0.187" Tabs for Field Wiring
Termination is via quick-connect tabs sized 0.187" (4.7 mm) — a standard size for push-on female disconnects. This allows fast, tool-less wiring in harness assembly or field installation.
Agency Approvals: CSA, UL, VDE — Accepted in North America and Europe
The PS0S0DMXE carries approvals from CSA, UL, and VDE. This means the module is recognized for use in equipment sold in North America (UL, CSA) and Europe (VDE), reducing the compliance burden for OEMs shipping to multiple regions. The approvals cover the filter, switch, and fuse holder as an integrated assembly.
