TE Connectivity AMP Connectors T4010008041-000

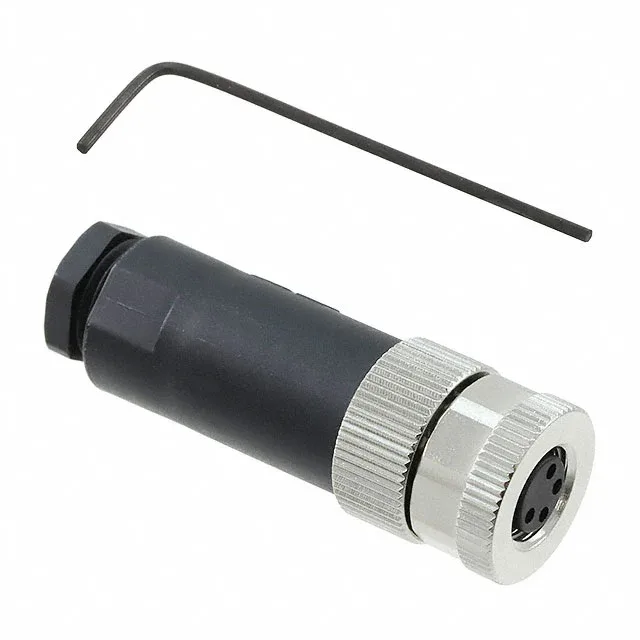

T4010008041-000 M8 4-Pos Female Receptacle, IP67, 3A

MPN T4010008041-000
Active

M8 circular receptacle, female sockets, 4 positions, screw termination, gold-plated contacts, IP67 rated, 3A at 30V, free-hanging in-line mount, silver shell with nickel finish.

$11.9100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesM8
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

T4010008041-000 key specifications
ParameterValue
SeriesM8
MountingFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Fastening typeThreaded
Voltage rating30V
Current rating3A
IP ratingIP67 - Dust Tight, Waterproof
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialBrass
Primary materialMetal
PackageBulk

All specifications

T4010008041-000 additional specifications
ParameterValue
FeaturesBackshell, Coupling Nut
OrientationA
TerminationScrew
ApplicationsAutomation Control, Industrial, Telecommunications
Shell finishNickel
Positions4
Shell size - insertM8-4
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

M8-4 Female Receptacle, Screw Terminated, IP67 Sealed

The T4010008041-000 is a 4-position M8 circular receptacle with female sockets, built for free-hanging in-line mounting in automation control, industrial, and telecom harnesses. The metal shell — brass with a nickel finish — carries an IP67 seal when mated, keeping dust and washdown water out of the connection. Gold-over-nickel contacts rated 3 A per circuit at 30 V handle both sensor power and 24 V signal lines, with the A-coded keying preventing a cross-mate with B- or D-coded M8 plugs.

Sealing and Temperature Range

IP67 rating means the connector is dust-tight and survives submersion in 1 m of water for 30 minutes — standard for sensor drops on packaging lines, washdown zones, and outdoor telecom cabinets.

Current, Voltage, and Contact Plating

The screw termination clamps down on the stripped wire directly, no crimp tool needed; the backshell and coupling nut complete the cable-side assembly.
