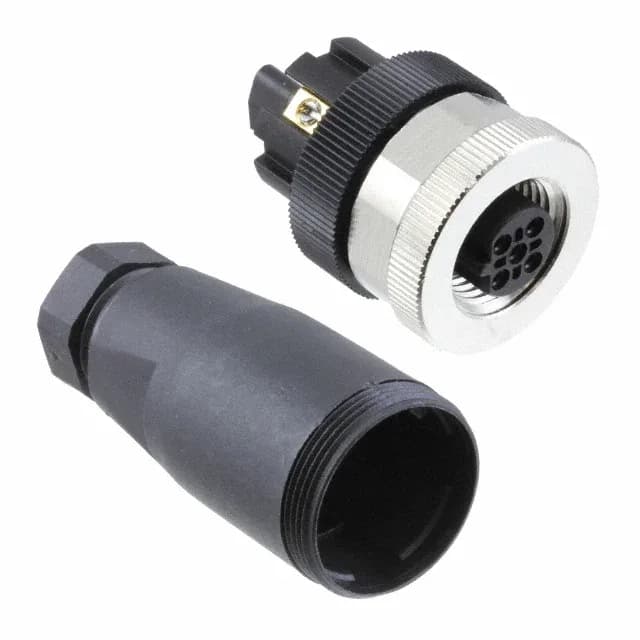

M12 B-Coded Female Plug for Harsh Industrial Environments
The threaded coupling nut and IP67 seal make it a field-mateable connector that holds up in washdown and high-vibration environments. Rated 4 A per contact at 60 V, with gold-plated mating surfaces (3.00 µin gold over nickel) for corrosion resistance over repeated mate cycles across a -40°C to 85°C operating range. The screw termination accepts cable from 4.00 mm to 6.00 mm diameter, and the nickel-plated brass shell with an integrated backshell and coupling nut provides a rugged, unshielded connection suited for industrial cabinet and field-installed harnesses.
Mating and Keying — B-Coding Prevents Mis-Mate
This M12-5 female plug mates with any B-coded M12 male connector of the same shell size (M12-5). The B-coding keying pin orientation ensures it cannot mate with A-coded, D-coded, or other keyed M12 connectors, eliminating cross-wiring in multi-connector panels. Threaded fastening secures the pair against vibration. The IP67 rating holds when fully mated with the matching cordset.
