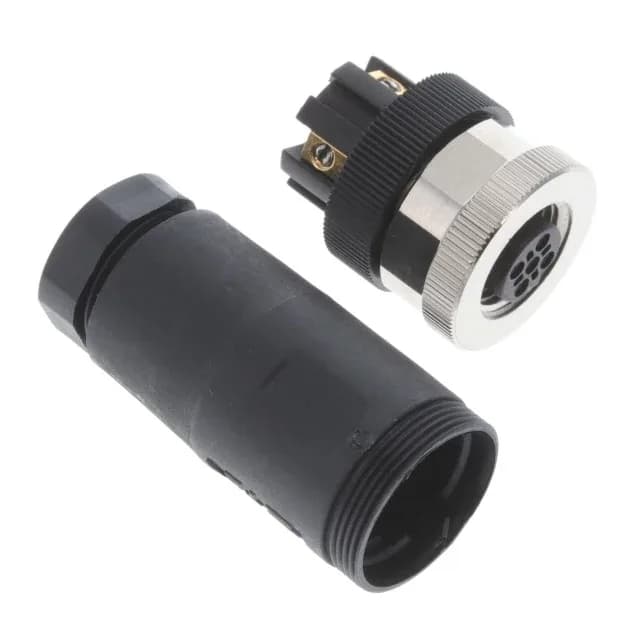

M12 Female Plug, 4-Position, B-Coded — IP67-Rated Field Wireable
The T4110402041-000: It carries a 4 A per contact current rating at 250 V, with gold-plated mating contacts (3.00 µin gold over nickel) for corrosion resistance in repeated mate/unmate cycles. The screw termination accepts cable diameters from 0.236" to 0.315" (6.00 mm to 8.00 mm), and the threaded coupling nut with integrated backshell provides strain relief and a secure IP67 seal when mated to the matching B-coded M12 male receptacle.
IP67 Sealing and B-Coding — Environment and Keying
The B-coded keying (orientation B) prevents accidental mating with A-coded or D-coded M12 connectors, a common mis-mate risk in mixed-protocol networks (e.g., DeviceNet vs. Profibus).
