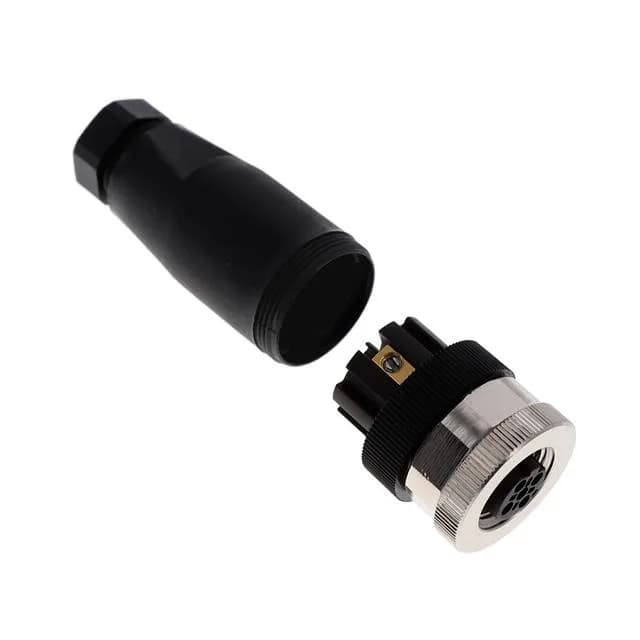

The T4110501041-000: It terminates via screw terminals and accepts cable jackets from 4.00 mm to 6.00 mm through the backshell. The nickel-plated brass shell and IP67 seal make it suited for industrial sensor, actuator, and fieldbus connections where dust and washdown are present. Gold-plated mating contacts (3.00 µ" thickness) handle moderate reconnect duty in clean environments.
Sizing the Cable Opening and Termination
The cable opening range of 0.157" to 0.236" (4.00 mm to 6.00 mm) sets the jacket OD that fits through the backshell — a critical dimension when pulling pre-terminated cable or assembling a harness. Screw termination means no crimp tool is needed for the 4 female sockets; strip and tighten.
Mating Half and Coding
This plug mates with a D-coded M12 male panel-mount receptacle or male cordset. The D-coding (orientation D) prevents cross-mating with A-, B-, or L-coded M12 connectors — the keyway alignment is specific to Ethernet/Profibus-style signal pairs. The threaded coupling nut provides vibration-resistant retention; IP67 is maintained only when fully mated with the matching IP67-rated receptacle.
Current and Voltage Headroom
Derate above 85°C per the manufacturer's curve.
