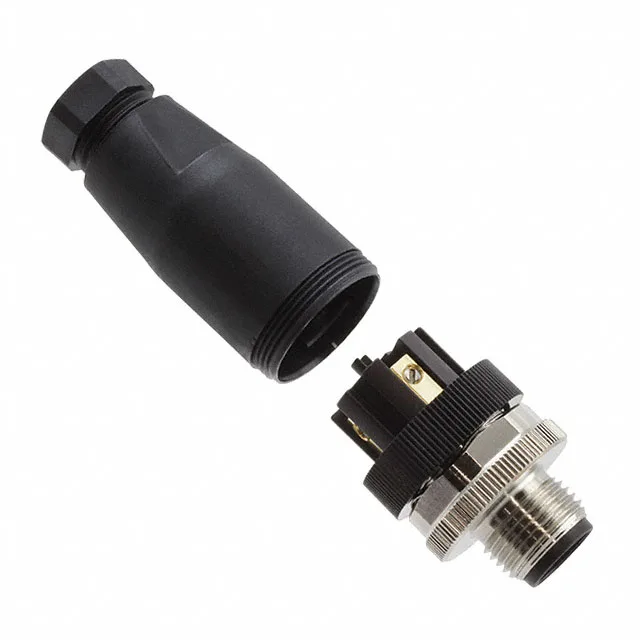

T4111001041-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

T4111001041-000 M12 Receptacle, 4-Position Male Pins, IP67

MPNT4111001041-000
Active

M12 A-coded receptacle, 4-position male pins, screw termination, IP67, 4A, 250V, gold-plated contacts, free-hanging, with backshell.

$6.9800Ref. price · indicative, final on quote
T4111001041-000 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4111001041-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle, Male Pins
Fastening typeThreaded
Voltage rating250V
Current rating4A
Ingress protectionIP67 - Dust Tight, Waterproof
Cable opening0.157\" ~ 0.236\" (4.00mm ~ 6.00mm)
Operating temperature-40°C ~ 85°C
ColorBlack, Silver
Shell materialBrass
Insert materialPolyamide (PA), Nylon
Contact materialZinc Alloy
Primary materialMetal
Backshell material, platingPolybutylene Terephthalate (PBT), Glass Filled
PackageBulk
FeaturesBackshell
ShieldingUnshielded
OrientationA
TerminationScrew
ApplicationsIndustrial
Shell finishNickel
Positions4
Shell size - insertM12-4
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

M12 A-Coded Receptacle for Harsh Industrial Environments

The T4111001041-000 is an M12 A-coded receptacle with male pins, designed for free-hanging (in-line) installation in industrial sensor, actuator, and fieldbus networks. This 4-position connector carries a 4A per-contact current rating at 250V, with gold-plated mating surfaces rated for repeated connection cycles in corrosive or washdown environments.

Wiring and Cable Fit

The screw termination accepts conductors without a crimp tool — strip, insert, tighten. The backshell, made from glass-filled PBT, clamps over cable diameters from 4.00mm to 6.00mm, providing strain relief and sealing at the cable entry.

Sealing and Environmental Protection

The IP67 rating means the mated pair is dust-tight and withstands temporary immersion — a requirement for food processing lines, washdown stations, and outdoor machine-mount applications.

Frequently asked questions

Is T4111001041-000 compatible with standard 4-pin M12 cables?

Yes. The A-coded keying and 4-position male pin layout mate with any standard 4-pin M12 A-coded female cordset or panel-mount receptacle following the IEC 60947-5-2 pinout.
