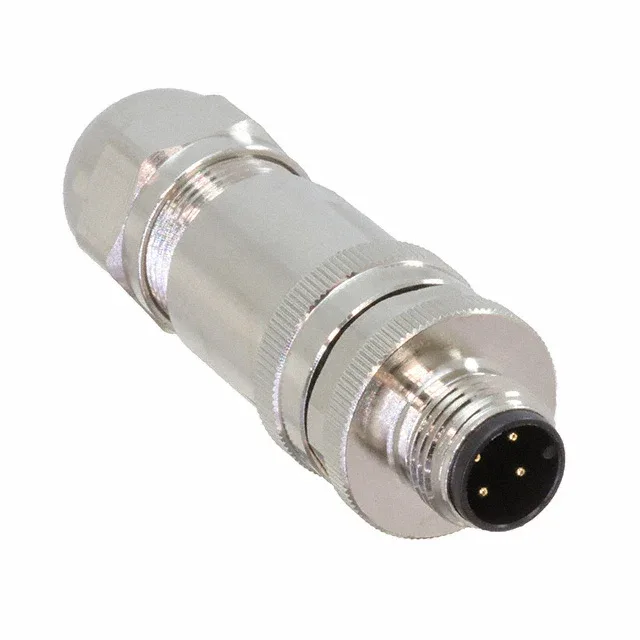

T4111012041-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity T4111012041-000 M12 Receptacle, 4-Pin

MPNT4111012041-000
Active

TE Connectivity M12 A-coded receptacle, 4 positions, male pins, gold plating, 4 A, 250 V, IP67, shielded, screw termination, cable opening 6.00 mm ~ 8.00 mm, includes backshell.

$10.3000Ref. price · indicative, final on quote
T4111012041-000 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4111012041-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle, Male Pins
Fastening typeThreaded
Voltage rating250V
Current rating4A
Ingress protectionIP67 - Dust Tight, Waterproof
Cable opening0.236\" ~ 0.315\" (6.00mm ~ 8.00mm)
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialBrass
Insert materialPolyamide (PA), Nylon
Contact materialZinc Alloy
Primary materialMetal
Backshell material, platingBrass, Nickel
PackageBulk
FeaturesBackshell
ShieldingShielded
OrientationA
TerminationScrew
ApplicationsIndustrial
Shell finishNickel
Positions4
Shell size - insertM12-4
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

M12 A-Coded Receptacle, 4-Position, Shielded, with Backshell

The TE Connectivity T4111012041-000 is an M12 A-coded receptacle with 4 male pins, gold-plated mating contacts, and a threaded coupling nut for vibration-resistant field attachment. The shielded metal shell (brass with nickel finish) and included backshell provide EMI/RFI protection for signal lines routed through industrial automation cabinets, sensor networks, and actuator junctions. The cable opening accepts jackets from 6.00 mm to 8.00 mm (0.236" to 0.315"), and the screw termination secures each conductor without crimp tooling — a practical choice for field-installed or MRO replacements where a crimp press is not on hand. The A-coded keying (orientation A) is the standard pin assignment for 4-position M12 sensor/actuator interfaces per IEC 61076-2-101, ensuring interchangeability with the broad installed base of A-coded M12 cordsets.

Frequently asked questions

What cable diameter fits the T4111012041-000?

The T4111012041-000 accepts cable jackets from 6.00 mm to 8.00 mm (0.236" to 0.315"). The included backshell clamps onto that OD range.

Does the T4111012041-000 include a backshell?

Yes, the backshell is listed as a standard feature. The backshell material is brass with nickel plating, matching the shell finish.
