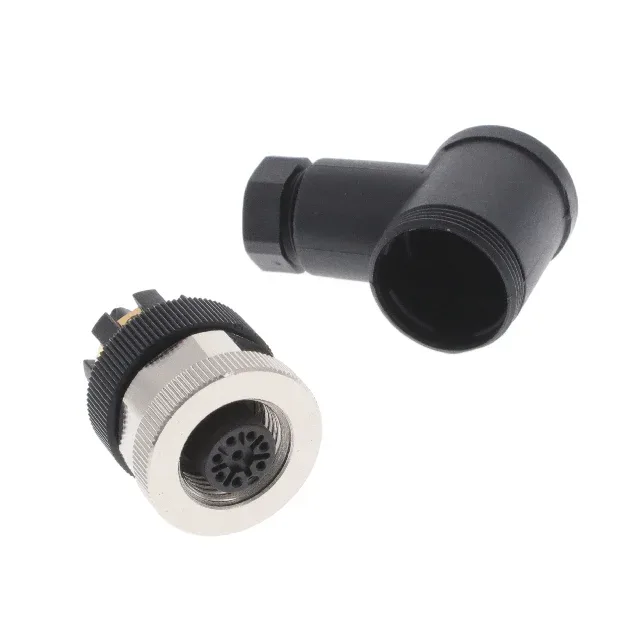

T4112001081-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

T4112001081-000 M12 Plug, 8-Pos, A-Code, IP67, Gold

MPNT4112001081-000
Active

M12 A-coded plug, 8-position female socket, 2 A, 30 V, IP67, gold-plated contacts, screw termination, free-hanging right-angle, nickel-plated brass shell.

$10.8500Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4112001081-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Female Sockets
Fastening typeThreaded
Voltage rating30V
Current rating2A
Ingress protectionIP67 - Dust Tight, Waterproof
Cable opening0.157\" ~ 0.236\" (4.00mm ~ 6.00mm)
Operating temperature-40°C ~ 85°C
ColorBlack, Silver
Shell materialBrass
Insert materialPolyamide (PA), Nylon
Contact materialZinc Alloy
Primary materialMetal
Backshell material, platingPolybutylene Terephthalate (PBT), Glass Filled
PackageBulk
FeaturesBackshell, Coupling Nut
ShieldingUnshielded
OrientationA
TerminationScrew
ApplicationsIndustrial
Shell finishNickel
Positions8
Shell size - insertM12-8
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

M12 A-Coded Field-Attachable Plug, 8 Positions

The T4112001081-000 is an 8-position M12 A-coded plug with female sockets, designed for field termination in industrial sensor and actuator networks. It carries a 2 A per-contact current rating at 30 V — suited for signal-level and low-power sensor loops rather than motor or bus-power circuits.

Termination and Cable Entry

Screw termination — field wiring with a screwdriver, no crimp tool. Cable opening accepts 4.00 mm to 6.00 mm diameter cable. A backshell and coupling nut are included as standard features, providing strain relief and a threaded fastening mechanism that holds the mated pair under vibration. The polyamide (nylon) insert and glass-filled PBT backshell keep the assembly light and electrically insulating.
