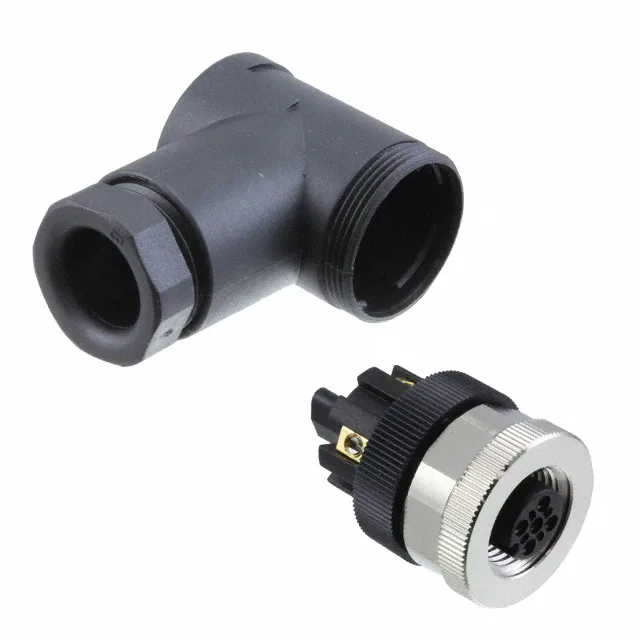

M12 B-Coded Plug for Sealed Harness Runs
It carries a 4 A per contact rating at 60 V, with the current limited by the contact size and housing thermal rise in the sealed cavity. The IP67 rating means the mated pair withstands dust ingress and temporary water immersion — suited for washdown environments, sensor drops on machine tools, and outdoor junction boxes where condensation is routine. Screw termination allows field assembly without a crimp tool — strip the wire, insert, tighten. The right-angle body and free-hanging mount let the cable exit parallel to the panel face, which keeps the bend radius tight inside a control cabinet or on a robotic arm.
What Mates With This Plug?
The threaded coupling nut (included) pulls the pair together and holds them under vibration. Stock both halves or neither — an orphan plug on the shelf is dead stock until its mate arrives. The cable opening accepts 4.00 mm to 6.00 mm diameter cable, which covers common sensor and actuator cables in the 4- to 5-mm range.
