TE Connectivity AMP Connectors T4112512041-000

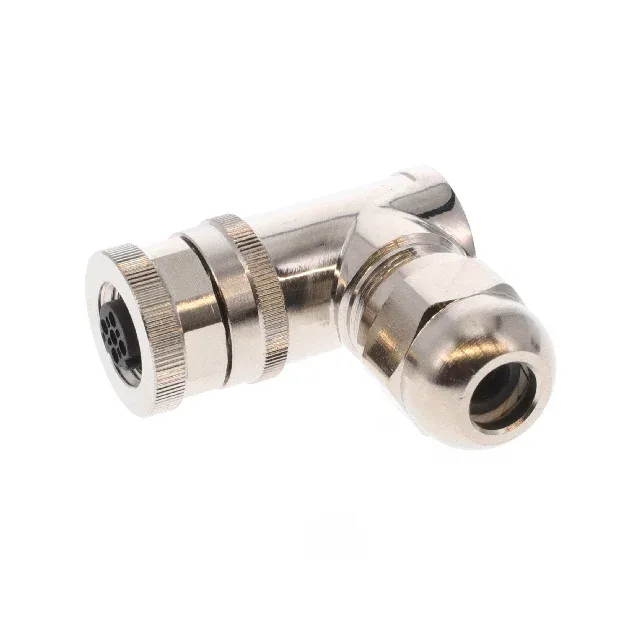

T4112512041-000 M12 D-Coded Plug, 4-Pin, IP67, Shielded

MPN T4112512041-000
Active

M12 D-coded plug, 4-position female socket, screw termination, IP67, shielded, nickel-plated brass shell, 250V/4A, -40°C to 85°C.

$7.8800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesM12
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

T4112512041-000 key specifications
ParameterValue
SeriesM12
MountingFree Hanging (In-Line), Right Angle
Connector typePlug, Female Sockets
Fastening typeThreaded
Voltage rating250V
Current rating4A
IP ratingIP67 - Dust Tight, Waterproof
Cable opening0.236\" ~ 0.315\" (6.00mm ~ 8.00mm)
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialBrass
Insert materialPolyamide (PA), Nylon

All specifications

T4112512041-000 additional specifications
ParameterValue
Contact materialZinc Alloy
Primary materialMetal
Backshell material, platingPolybutylene Terephthalate (PBT), Glass Filled
PackageBulk
FeaturesBackshell, Coupling Nut
ShieldingShielded
OrientationD
TerminationScrew
ApplicationsIndustrial
Shell finishNickel
Positions4
Shell size - insertM12-4
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

What This M12 D-Coded Plug Covers and What It Doesn't

The T4112512041-000 is an M12 D-coded plug with 4 female sockets, screw termination, and a right-angle cable exit. The D-coding is the key here — it's the Profinet / Ethernet / Industrial Ethernet coding, not the A-coded sensor bus or B-coded fieldbus. If your network expects D-coding, this is the right shell; if you try to mate it with an A-coded receptacle, the keying stops you before you can cross-thread the coupling nut. It's a field-wireable plug — the screw terminals and the backshell with coupling nut let you terminate the cable in the field without special tooling beyond a screwdriver and a cable stripper. The cable opening accepts 0.236" to 0.315" (6.00 mm to 8.00 mm) diameter cable, which covers most standard industrial sensor and Ethernet cables. The backshell is glass-filled PBT, not metal — it provides strain relief and environmental sealing but doesn't carry the shield. The shell is brass with nickel finish, and the connector is shielded.

The T4112512041-000 has 4 positions arranged in the standard M12 D-coding pinout. D-coding uses a specific keyway position and pin arrangement — the female sockets are numbered 1 through 4. The orientation is D-coded, which means the keying pin on the plug aligns only with a D-coded receptacle. If you're wiring a Profinet device, the pinout is typically 1=TX+, 2=RX+, 3=TX-, 4=RX- (per IEC 61784-5-3), but confirm the device manufacturer's pin assignment before terminating. The connector is a right-angle plug — the cable exits at 90° to the mating axis.
