M12 Receptacle for the Washdown Line — 4 Male Pins, Screw Terminated

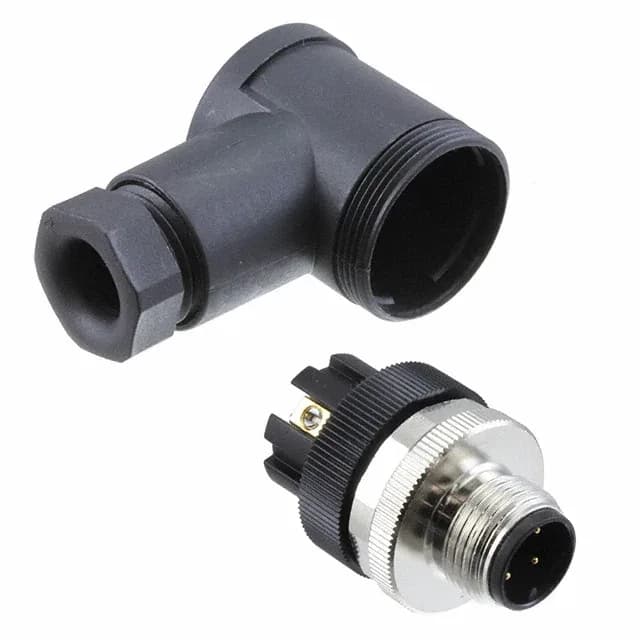

The TE Connectivity T4113001041-000 is an M12 A-coded receptacle with 4 male pins, built for a free-hanging, right-angle cable exit. The shell is nickel-plated brass (silver), the backshell is black PBT glass-filled — you see that contrast on a crowded panel and know which connector is which. Rated IP67 when mated with the matching female cordset, so a hand-tightened coupling seals the contacts from washdown spray and dust on a conveyor line or a packaging machine. Termination is screw-clamp — strip the wire, insert, tighten. No crimp tool, no special die.
Pin Configuration and Mating
The pin configuration is 4 male contacts in an M12-4 A-coded shell. A-coded means the keying pin position is fixed — an A-coded plug mates only with an A-coded receptacle.
