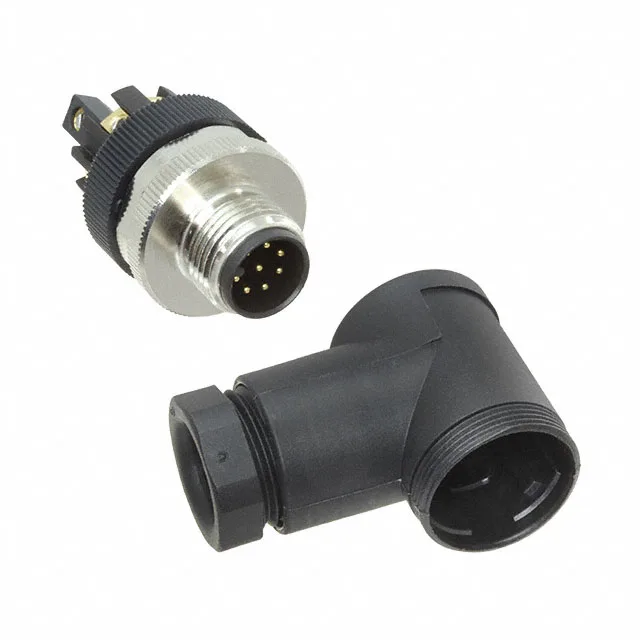

M12 A-Coded Male Receptacle for Sealed Field Wiring
It uses a threaded coupling ring for vibration-resistant mating and carries an IP67 rating against dust and temporary water immersion, making it a fit for washdown zones, conveyor lines, and outdoor sensor networks. The 2 A per-contact current rating at 30 V means this connector is sized for signal-level power and sensor circuits, not motor or bus-level loads. The 8-position count matches the full pin complement of an M12-8 interface, giving you all eight circuits in a single shell.
The screw termination accepts conductors through a cable opening of 0.236" to 0.315" (6.00 mm to 8.00 mm) jacket diameter. A backshell is included in the assembly, providing strain relief and protecting the termination point from pull forces. The shell is nickel-plated brass; the insert is polyamide (nylon). The connector is unshielded, so it is suited for non-EMI-critical signal paths or where the cable itself provides the screening.
