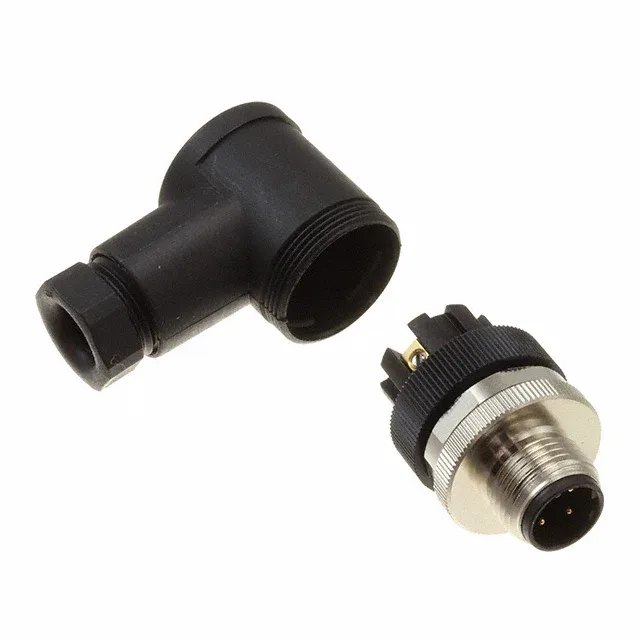

T4113501041-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity T4113501041-000 M12 D-Coded 4-Pin Male

MPNT4113501041-000
Active

TE Connectivity M12 D-coded receptacle, 4-position male pins, gold-plated contacts, IP67, screw termination, 250V/4A, free-hanging right-angle, threaded coupling.

$7.3100Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4113501041-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle, Male Pins
Fastening typeThreaded
Voltage rating250V
Current rating4A
Ingress protectionIP67 - Dust Tight, Waterproof
Cable opening0.157\" ~ 0.236\" (4.00mm ~ 6.00mm)
Operating temperature-40°C ~ 85°C
ColorBlack, Silver
Shell materialBrass
Insert materialPolyamide (PA), Nylon
Contact materialZinc Alloy
Primary materialMetal
Backshell material, platingPolybutylene Terephthalate (PBT), Glass Filled
PackageBulk
FeaturesBackshell
ShieldingUnshielded
OrientationD
TerminationScrew
ApplicationsIndustrial
Shell finishNickel
Positions4
Shell size - insertM12-4
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

M12 D-Coded Male Receptacle for Field Wiring

The TE Connectivity T4113501041-000 is an M12 D-coded receptacle with 4 male pins, designed for industrial Ethernet and Profinet field-device connections. It is the panel or cable-mount side — the fixed half that mates with a female-socket plug. The D-coding orientation keys the connector so only a matching D-coded plug mates, preventing cross-connection with A- or B-coded M12s on the same machine. The threaded coupling locks the mated pair against vibration; you screw it down and it stays put until you wrench it loose. Screw termination means you strip, tin, and clamp the wires into the contacts with a screwdriver — no crimp tool needed, which makes it field-serviceable. The backshell is included and accepts cable jackets from 4.00mm to 6.00mm, covering common M12 sensor and Ethernet cables.

4-Pin D-Code Pinout and Current

Four positions, D-coded. Each contact rated 4A at 250V.

Frequently asked questions

What is the cable diameter range for T4113501041-000?

The backshell accepts cable jackets from 4.00mm to 6.00mm (0.157" to 0.236"). That covers standard M12 sensor and Ethernet patch cables — if your cable jacket is thicker or thinner, the clamp won't seal properly.

Is T4113501041-000 compatible with standard M12 cables?

Yes, but only with D-coded M12 plugs. The D-coding orientation means it physically rejects A-coded (sensor) and B-coded (fieldbus) plugs. The 4.00mm to 6.00mm cable opening fits the jacket diameter of standard M12 cables.
