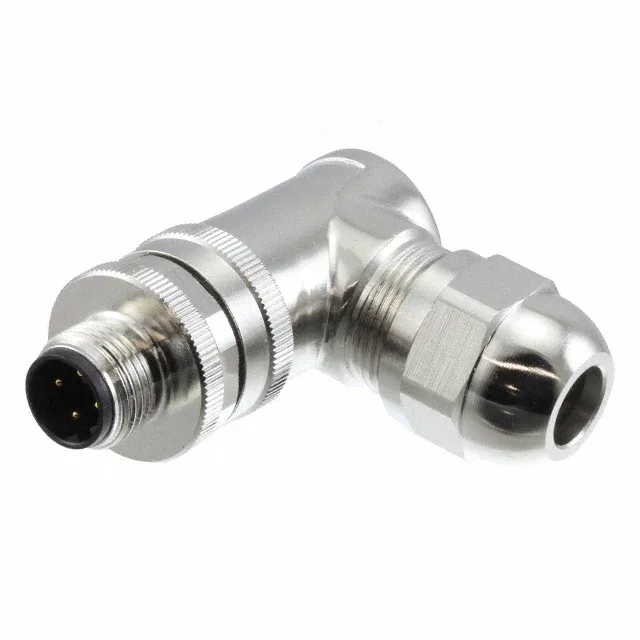

T4113512041-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity T4113512041-000 M12 Receptacle, 4-Pos, IP67

MPNT4113512041-000
Active

TE Connectivity M12 D-coded receptacle, 4-position male pins, gold-plated contacts, IP67 sealed, shielded, right-angle screw termination, 4A, 250V, cable opening 6.00-8.00mm.

$11.0400Ref. price · indicative, final on quote
T4113512041-000 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4113512041-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle, Male Pins
Fastening typeThreaded
Voltage rating250V
Current rating4A
Ingress protectionIP67 - Dust Tight, Waterproof
Cable opening0.236\" ~ 0.315\" (6.00mm ~ 8.00mm)
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialBrass
Insert materialPolyamide (PA), Nylon
Contact materialZinc Alloy
Primary materialMetal
Backshell material, platingBrass, Nickel
PackageBulk
FeaturesBackshell
ShieldingShielded
OrientationD
TerminationScrew
ApplicationsIndustrial
Shell finishNickel
Positions4
Shell size - insertM12-4
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

M12 D-Coded Receptacle for Industrial Sensor Networks

The T4113512041-000: The D-coding prevents cross-mating with A-, B-, or C-coded M12 connectors, ensuring correct pin assignment in sensor/actuator networks. Gold-plated contacts rated 4A per circuit at 250V handle the power and signal needs of proximity sensors, photoelectric cells, and valve manifolds in washdown zones.

Cable Entry and Wiring Fit

The backshell accepts cables from 6.00 mm to 8.00 mm outer diameter. Screw termination suits field wiring without special tooling.

Shielding and Environmental Protection

The nickel-plated brass shell provides shielding continuity when mated with a shielded M12 cordset. The IP67 seal allows the connector to live on the machine frame in coolant splash or hose-down cleaning cycles.

Frequently asked questions

Is the T4113512041-000 shielded and suitable for industrial environments?

Yes, the T4113512041-000 is shielded with a nickel-plated brass shell and carries an IP67 rating, making it suitable for industrial environments with EMI exposure and washdown requirements.

What is the cable opening range for the T4113512041-000?

The backshell accepts cables with an outer diameter of 6.00 mm to 8.00 mm (0.236" to 0.315").
