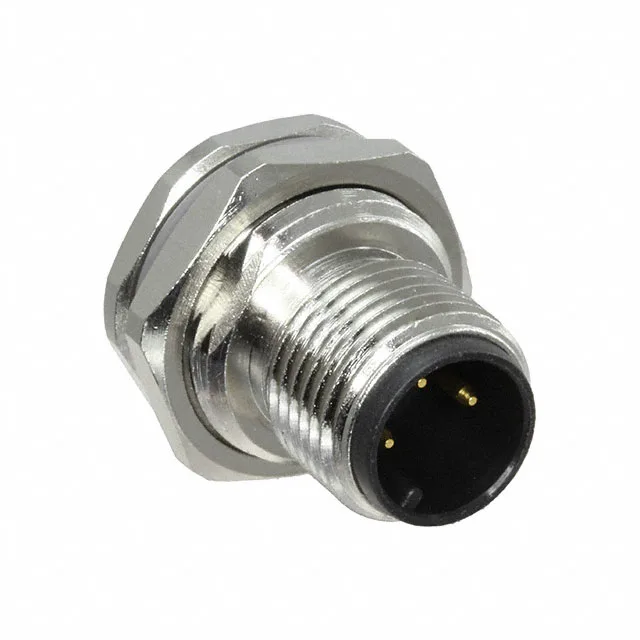

T4130012031-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity T4130012031-000 M12 Receptacle, 3-Pin

MPNT4130012031-000
Active

TE Connectivity M12 receptacle, male pins, 3 positions, A-coded, IP67, 4 A, 250 V, solder cup, panel mount, nickel shell, gold-plated contacts.

$6.1200Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4130012031-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typePanel Mount
Connector typeReceptacle, Male Pins
Fastening typeThreaded
Voltage rating250V
Current rating4A
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Front Side Nut
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialCopper Alloy
Insert materialPolyamide (PA66), Nylon 6/6
Contact materialCopper Alloy
Primary materialMetal
Material flammability ratingUL94 V-0
PackageBulk
ShieldingUnshielded
OrientationA
TerminationSolder Cup
ApplicationsIndustrial
Shell finishNickel
Positions3
Shell size - insertM12-3
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

M12 A-Coded 3-Position Panel Receptacle — Solder Cup Termination

It terminates via solder cup — no crimp tool required, but the installer needs to manage the solder joint and provide external strain relief on the cable.

Coding and Mating — Why A-Coding Matters

A-coding is the standard for sensor and actuator networks per IEC 61076-2-101. An A-coded receptacle will not accept a B-coded or D-coded plug — the keying pin position is non-negotiable. If your harness uses B-coded (typically for Fieldbus/DeviceNet) or D-coded (Ethernet) connectors, this part will not mate. Confirm the coding of your mating cordset before specifying. The 3-position count is the most common for M12 sensor/actuator loops — power, ground, and one signal or a switched output. For applications requiring more conductors (e.g., 4- or 5-position for analog sensors or dual-channel safety), a different shell size or pin count is needed.

Frequently asked questions

What is the IP rating of the T4130012031-000 M12 connector?

The T4130012031-000 carries an IP67 rating — dust-tight and protected against temporary immersion in water when mated with the matching female cordset. The seal is at the panel face, not the thread.

What is the difference between A-coded and B-coded M12 connectors?

A-coding (this part) is the standard for sensor and actuator networks. B-coding is used for Fieldbus/DeviceNet applications. The keying pin position differs — an A-coded receptacle will not accept a B-coded plug, and vice versa. Always match the coding of your mating cordset.
